Lakeside 7130

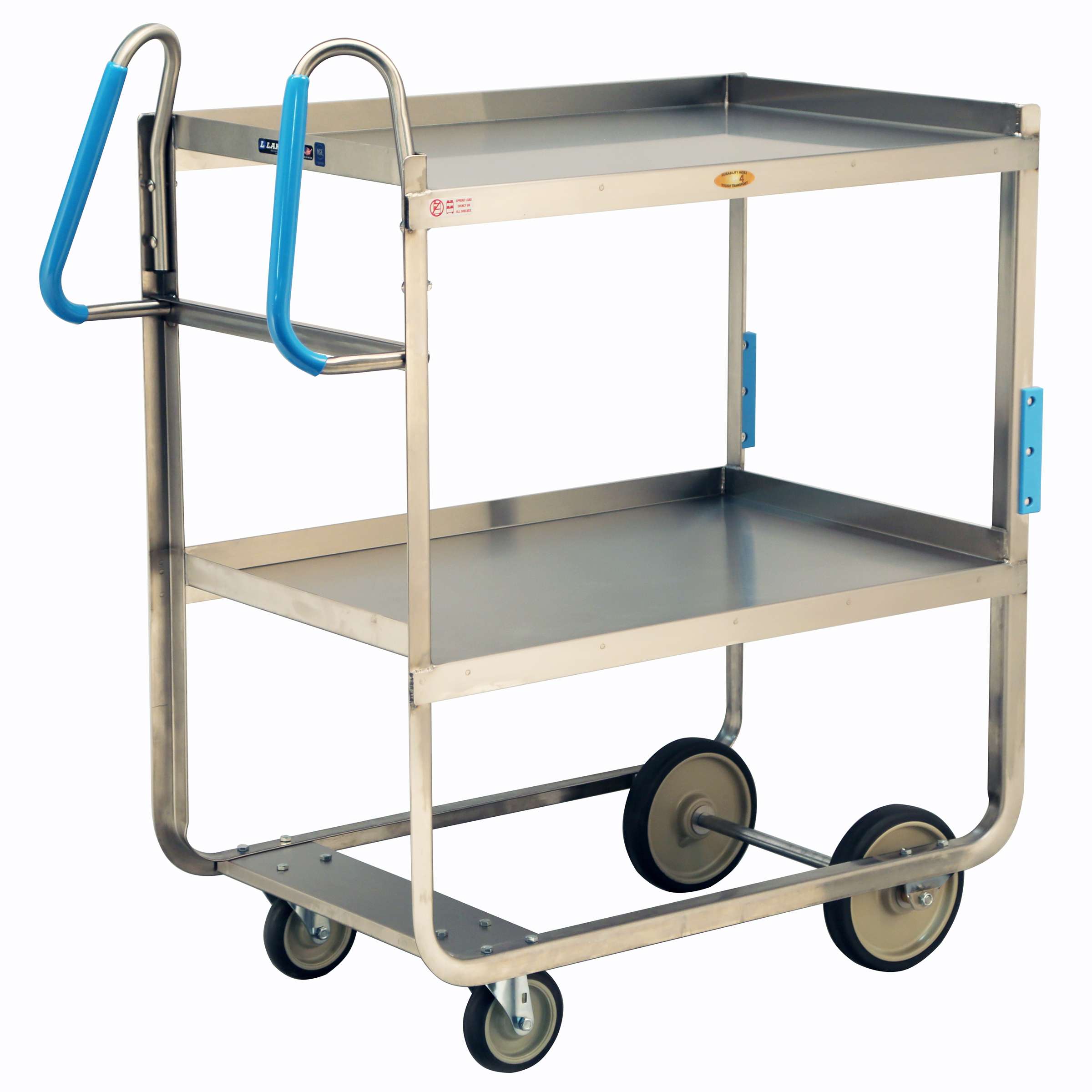

Ergo-One System Utility Cart, NSF, 2 Shelf: 21″ x 49″, 1000-Lb. Capacity

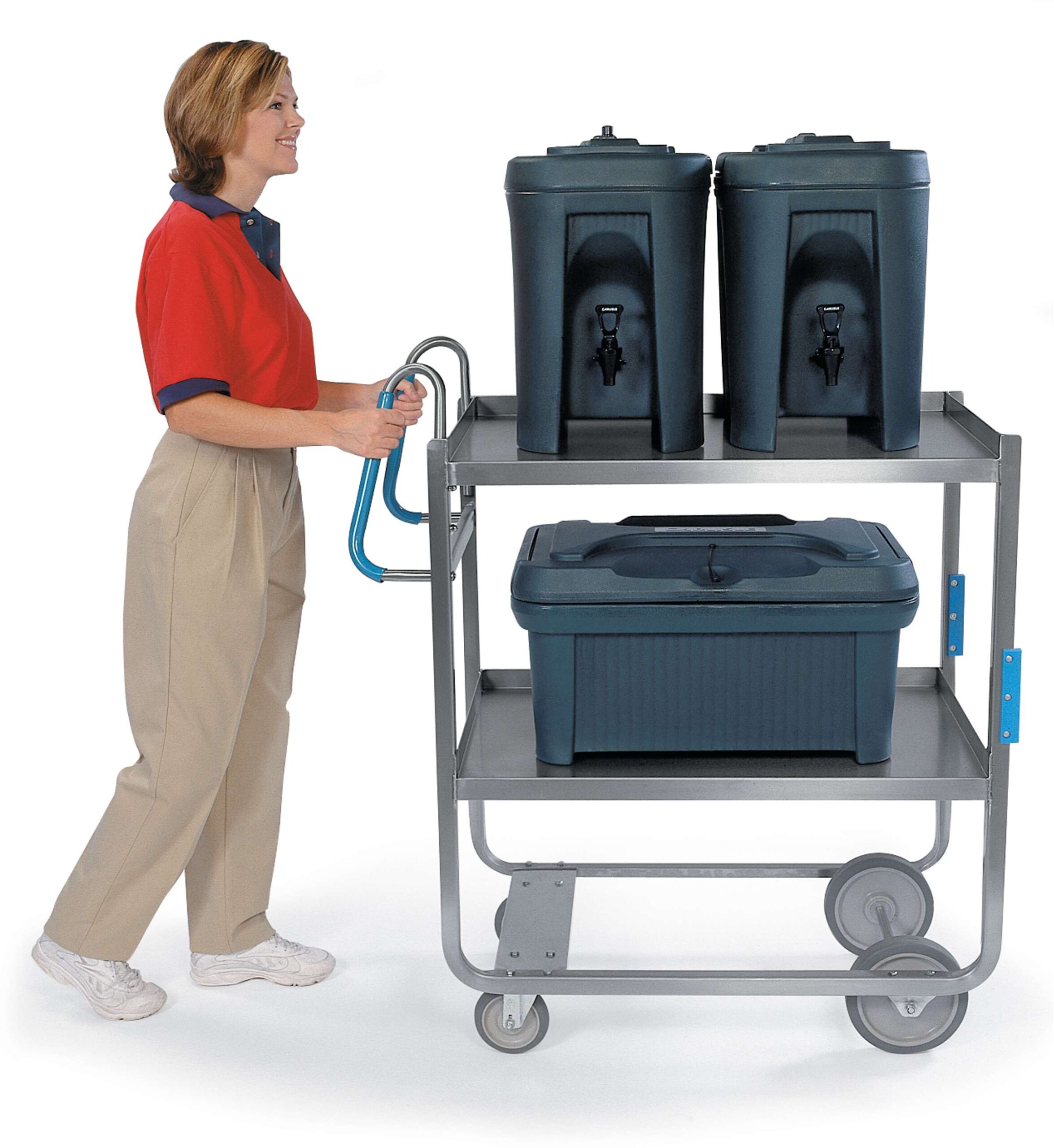

This NSF certified cart with vertical handles features a safety zone designed to accommodate the human body during loading and unloading.

Ergo-One System Utility Carts by Lakeside Manufacturing were designed to reduce injuries caused by improper pushing, lifting and loading. The Lakeside 7130 Ergo-One System Utility Cart with (2) shelves measuring 21" x 49" has a weight capacity of 1000-Lb. This ergonomic utility cart's vertical handle with comfortable grip ensures an operator's wrists are in the correct position for pushing and steering. This Lakeside cart's “Safety Zone” shelves are the proper height for loading and unloading, top shelf is 40" (1016) from the floor and bottom shelf is 20” (508) from the floor. This utility cart's no-mark, extra load, cushion-tread wheels absorb impact, reducing vibration and strain. This foodservice cart on wheels' 14-gauge stainless steel shelves are reinforced for added strength, while its joints are fully welded to better withstand heavy loads and frequent use. This ergonomic utility cart's stainless steel is easy to clean and sanitize. Its leg bumpers protect walls and furniture. This model is NSF listed. Lakeside has the widest selection on the market and offers custom solutions. Industry leading ship times from Lakeside’s US factory. Made in the USA. The SAFETY Zone: Ergonomics is the term defining work methods and tools designed to accommodate the human body. Ergo-One System carts are designed to be “body friendly.” to help prevent injuries resulting from repetitive loading and unloading. Ergo-One shelf heights are in the “safety zone” – the bottom shelf is 20" (508 mm) from the floor; the top shelf is 34-1/8" to 353/4" (867 mm) from the floor.
9
Day
Current availability as soon as 9 business days
NSF

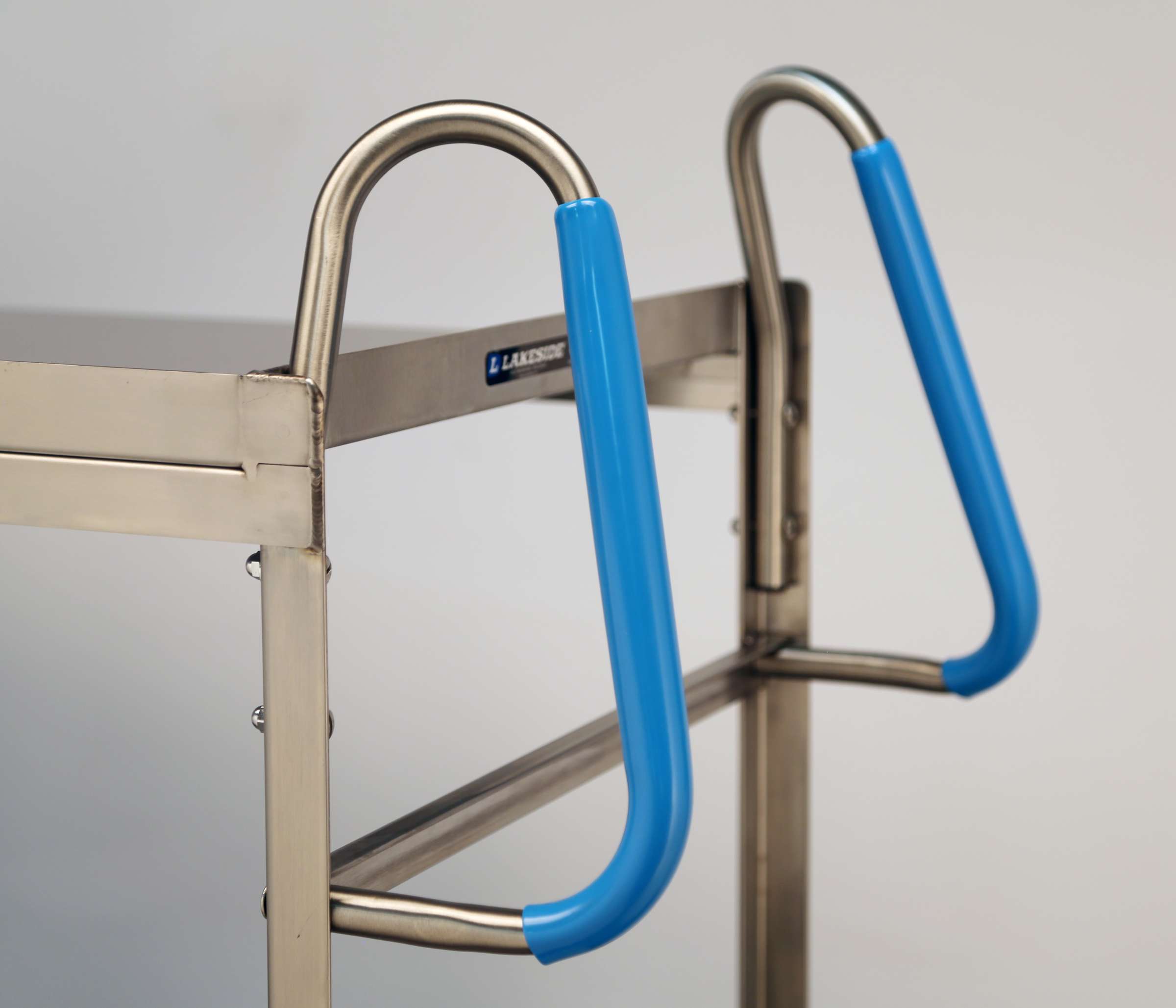

  • Vertical handle with comfortable grip ensures wrists are in the correct position for pushing and steering.
  • “Safety Zone” shelves are the proper height for loading and unloading, top shelf is 40" (1016) from the floor and bottom shelf is 20” (508) from the floor.

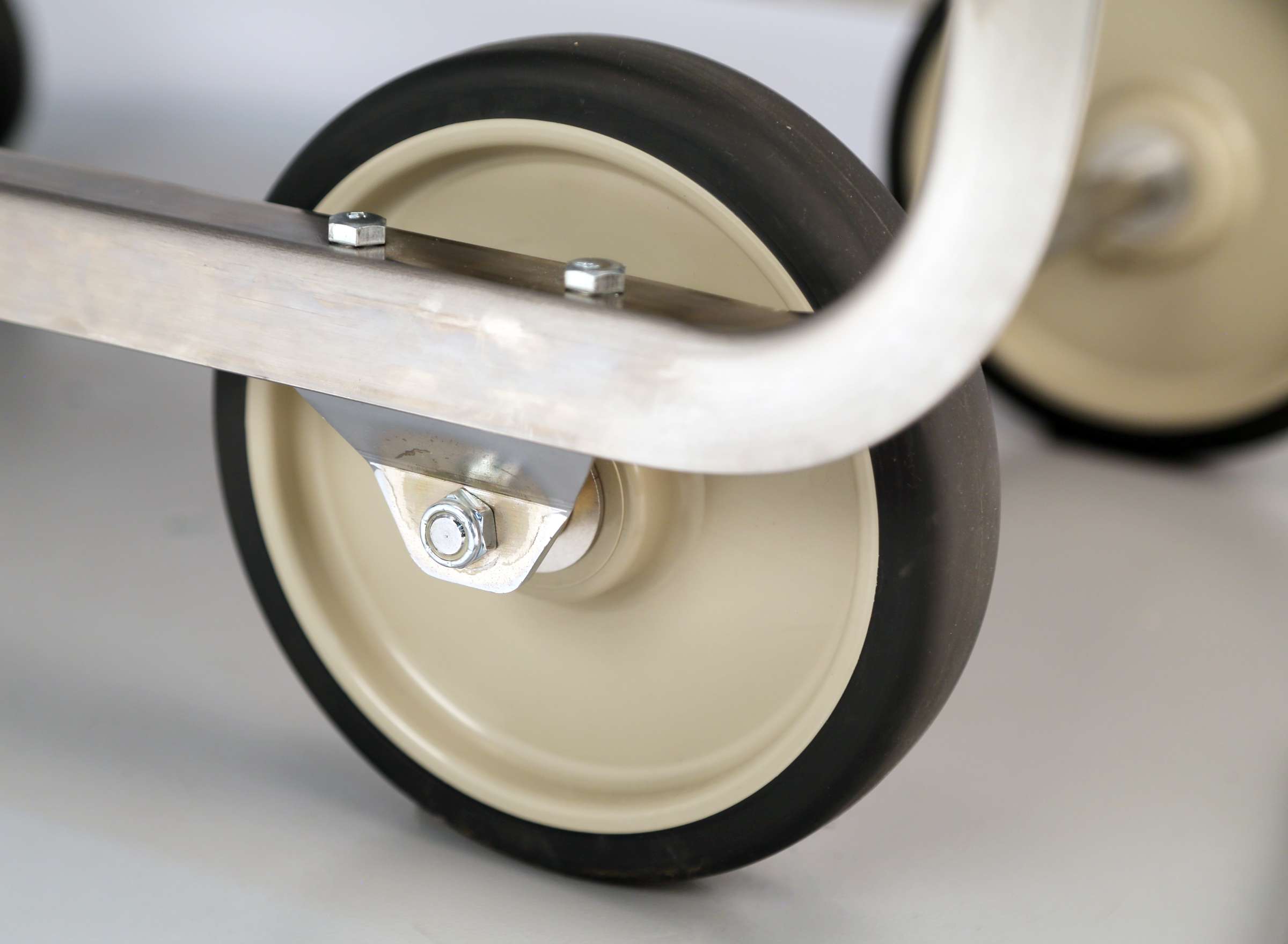

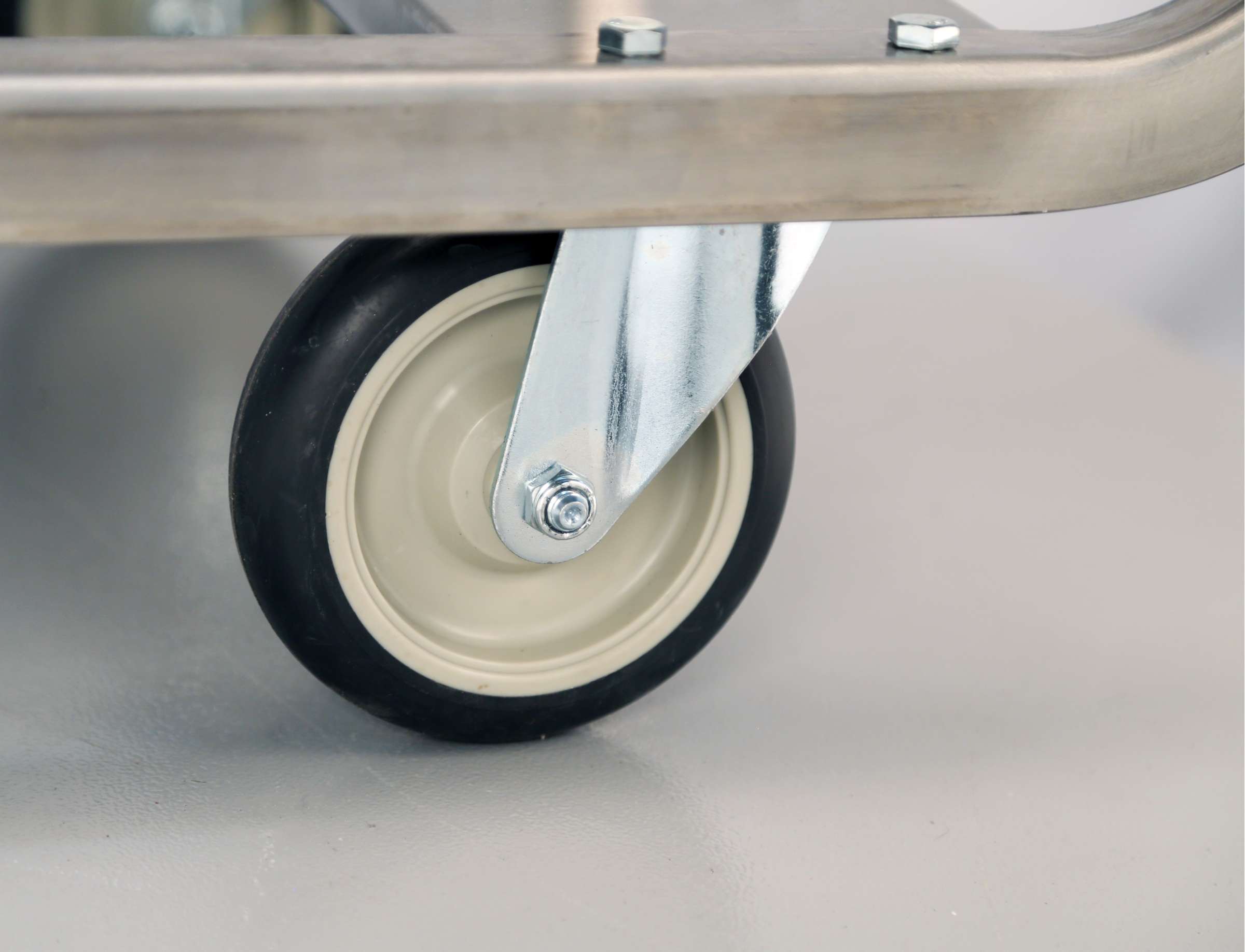

  • No-mark, extra load, cushion-tread wheels absorb impact, reducing vibration and strain.

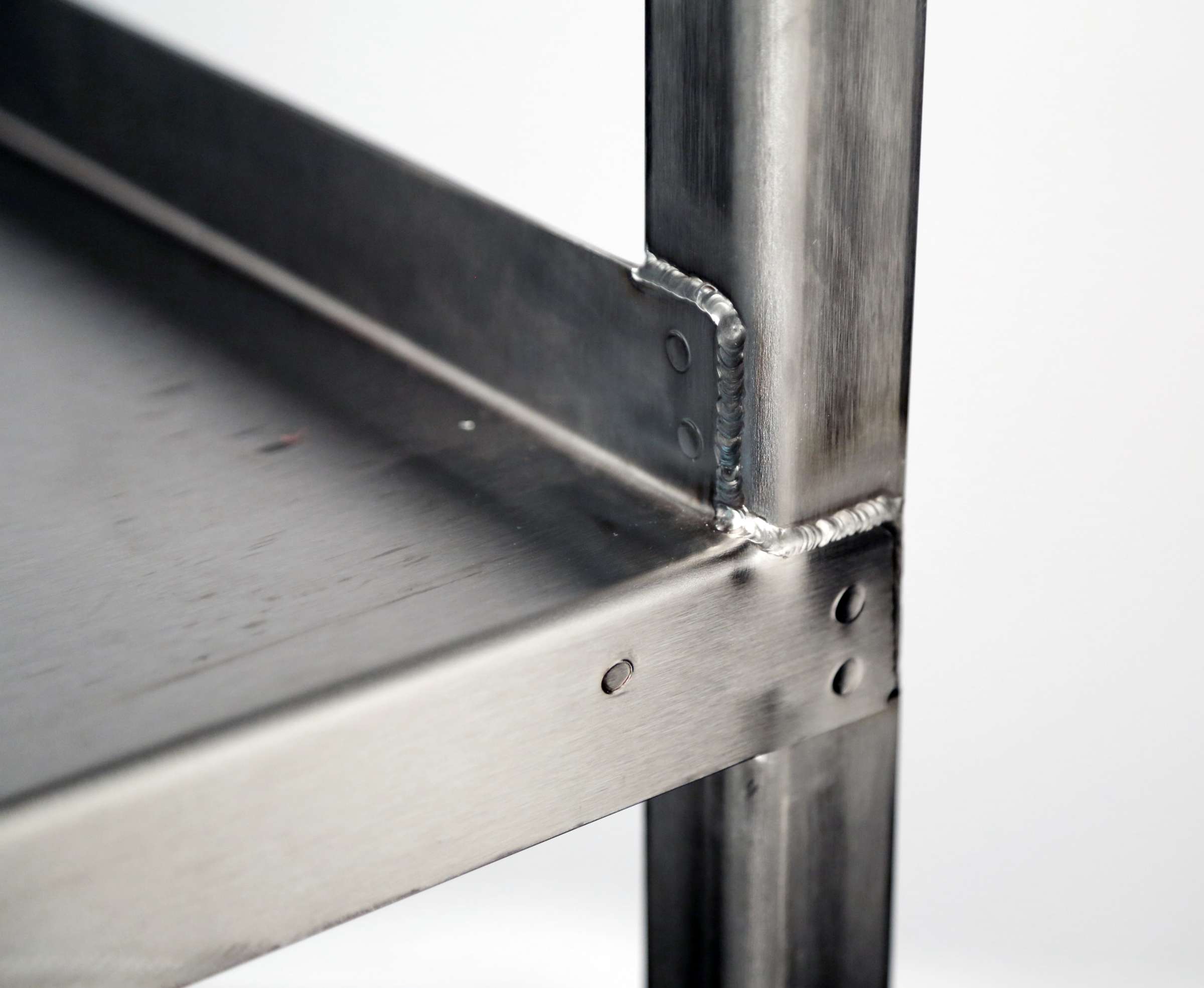

  • All joints are fully welded to better withstand heavy loads and frequent use.

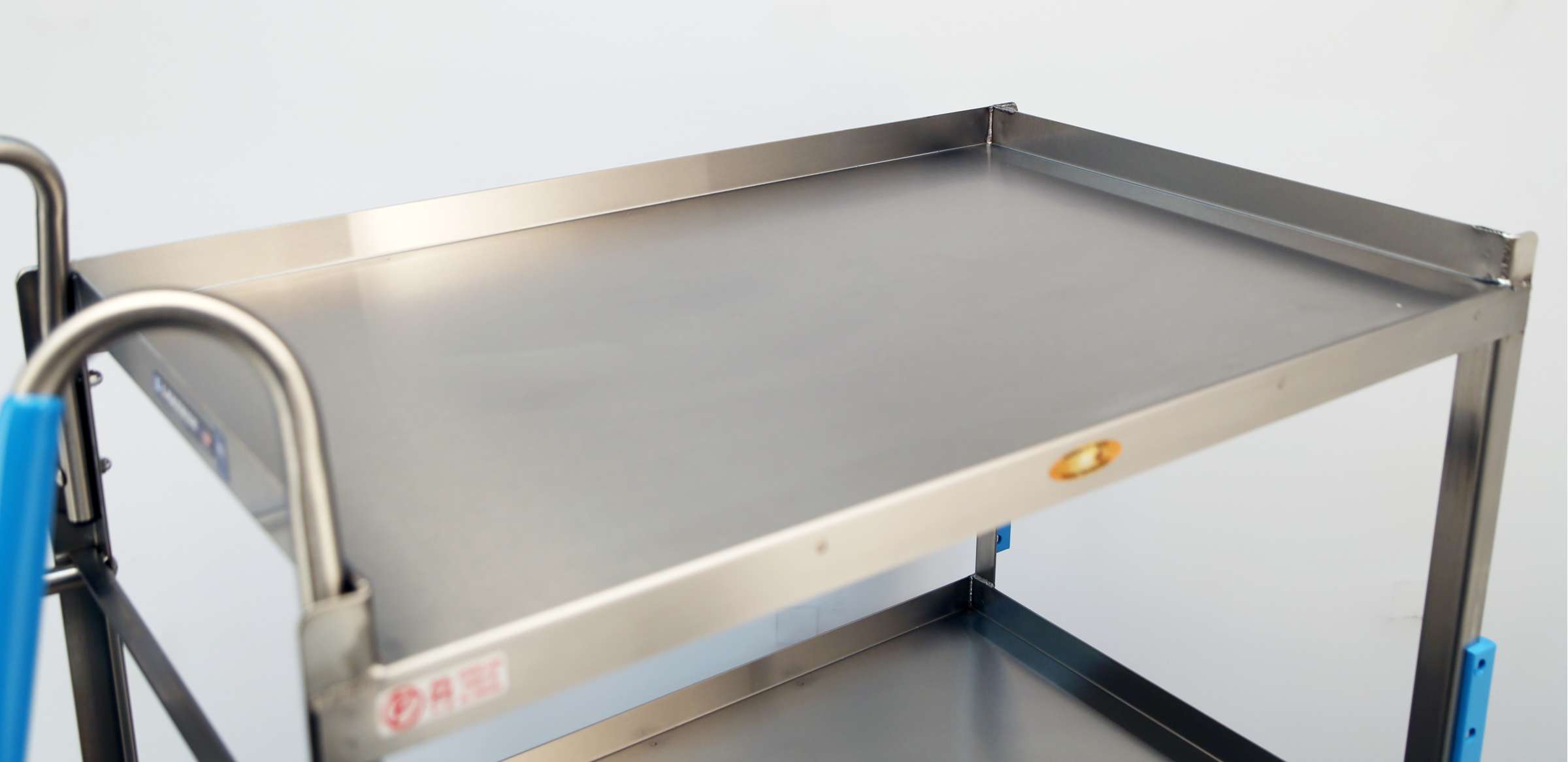

  • 14-gauge stainless steel shelves reinforced for added strength.
  • Stainless steel is easy to clean and sanitize.

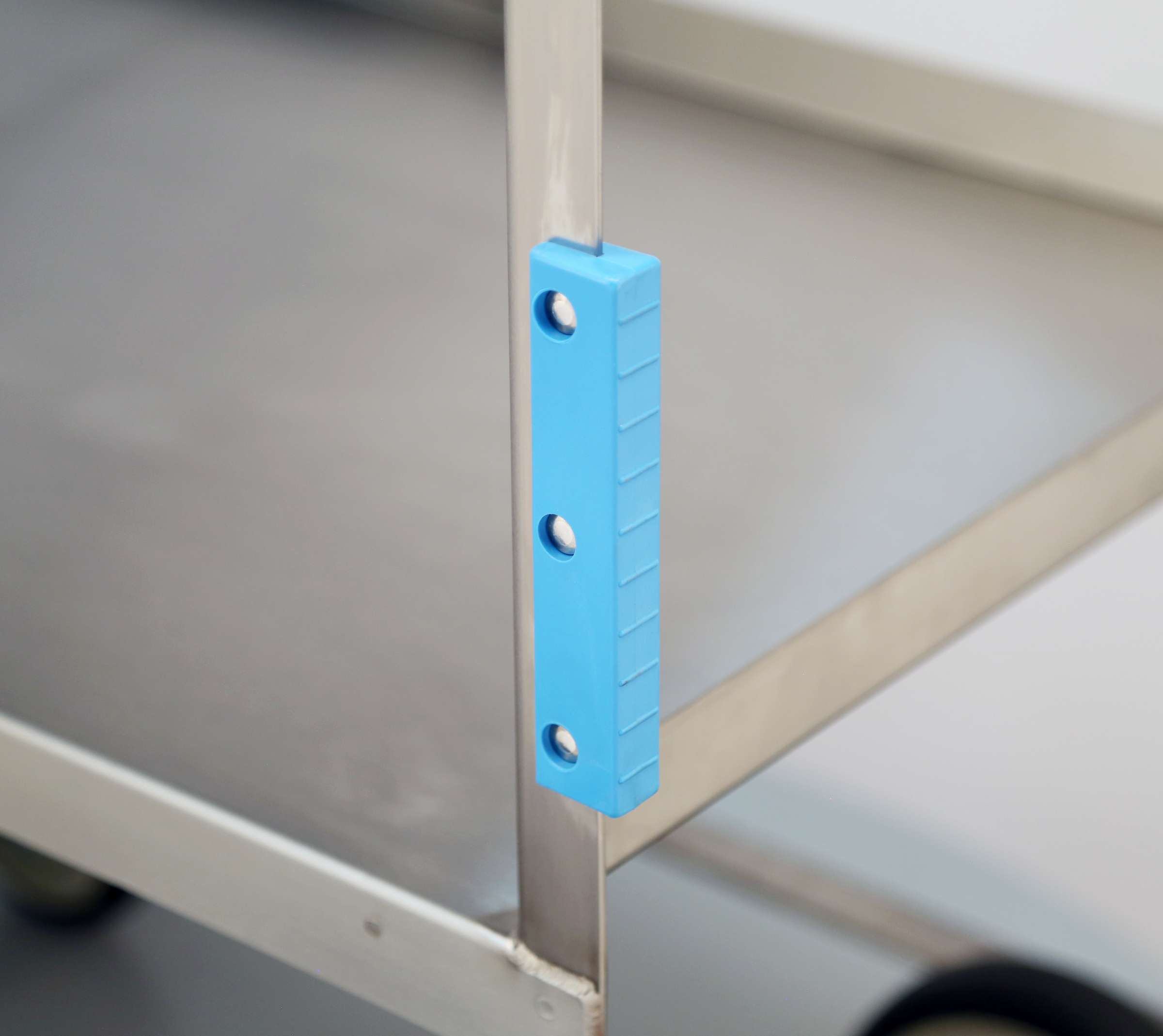

  • Leg bumpers protect walls and furniture.

Specifications

Collapse
Brand

Lakeside

Caster Size-Front (in)

5

Caster Size-Rear (in)

8

Caster Type

2 Ea. Fixed, 2 Ea. Swivel, Extra-Load, No-Mark Polyurethane

Country of Origin

US

Ergonomic Design

Ergonomically Engineered

Frame Type

Formed Angle

Item Dimensions (L x W x H) 57.44 in x 21.63 in x 46.75 in
Material

Stainless Steel

Model

Ergo-One

NSF

Yes

Number of Shelves

2

Proposition 65 Warning This product can expose you to wood dust and chemicals including chromium, which are known to the State of California to cause cancer. For more information, go to: www.P65Warnings.ca.gov.
Shelf Clearance (in)

18.5

Shelf Dimensions

21 in x 49 in

Shipping Class 125
Shipping Dimensions 55.5 × 24 × 43 in
Shipping Method

LTL

Shipping Weight 111 lbs
Weight Capacity (lbs)

1000

Product Specification: Unit shall be of fully welded stainless steel construction with an overall carrying capacity of 1000 pounds. Legs and frame shall be of U-frame design, eliminating the need for corner reinforcements. Leg/frame shall be .120 x 1" x 1" angle stainless steel. Shelves shall be of 14-gauge stainless steel and shall be continuously TIG welded to vertical leg frames. Shelves shall be reinforced front and back with 18-gauge angle welded to the shelf underside. Bottom shelf shall be positioned no closer than 20" (508 mm)from the floor surface, and top shelf shall be positioned no higher than 40" (1016 mm) from the floor surface. Push handles shall be of ergonomic vertical design and shall feature 8" (203 mm) range grip height. Unit shall have two each 5" (127 mm) diameter extra-load swivel casters with 1-1/4" wide non-marking polyurethane wheels and two each 8" diameter extra-load wheels mounted to a fixed axle. Swivel casters shall be plate type and shall be bolted to an 18-gauge 5" wide stainless steel cross member with a galvanized reinforcement. Unit shall have two each 6" (152 mm) vertical bumpers riveted to front legs. Unit shall be NSF listed.

Durability Index

Collapse
Durability Index





Maximum Weight300lbs / 135KG500lbs / 230KG700lbs / 320KG1000lbs / 450KG1500lbs / 680KG
Weight Visualization75 plates150 plates250 plates100 12oz. cans30 cases of wine
Vinyl Tile
Indoor Concrete
Ceramic Tile
Carpet
Outdoor Uneven
Daily Hour UsageUp to 34 to 99 to 1210 to 18Up to 24 hours
Ideal UsageDining area bussing, set-up tray station, soiled dish stationDining room bussing, set-up tray station, soiled dish station.Receiving goods, moving loads for warewashingReceiving dock and storage room, loading and moving dishes and flatware.Casinos and correctional facilities, receiving dock and warehousing
Legs Steel Gauge2016111111 or 14
Shelf Steel Gauge2220181414
Caster Size3-1/2” to 4”4” to 5”5" to 8”5" to 8”6" to 8”

Manuals & Documents

Collapse

Options & Accessories

Collapse

Standard products are available in a wide variety of common caster and bumper configurations or commercial grade vinyl and laminate finishes. These options along with accessories are listed below. Please contact us if you would like to further modify or customize a product to meet your needs.

Available Finish Options

Stainless Steel

Custom

Collapse

Choose from a wide selection of proven product designs that can also be modified or customized to meet specific applications. Our experienced customer service team is ready to help with a quote today!

Design Your Own
