Lakeside DCD-5514

DCD Mobile Tray Delivery Cart, NSF,14 Tray Capacity

Tray Delivery Cart by Lakeside Manufacturing are full of features and built for quiet operation. The Lakeside DCD-5514 is NSF and has a (14) tray capacity. This cart has removable ledge panels that are fastened in-place to eliminate vibrations. The welded construction eliminates rattles from loose hardware fittings. The DCD-5514 has (4) wide 8" casters with 2" wide cushion tread for quiet transport.  This cart has an exterior magnet that holds the door securely open at 270 degrees. The anti-static floor strap prevents static charge buildup. Fastest in industry lead times from Lakeside’s factory in the USA.
8
Day
Current availability as soon as 8 business days

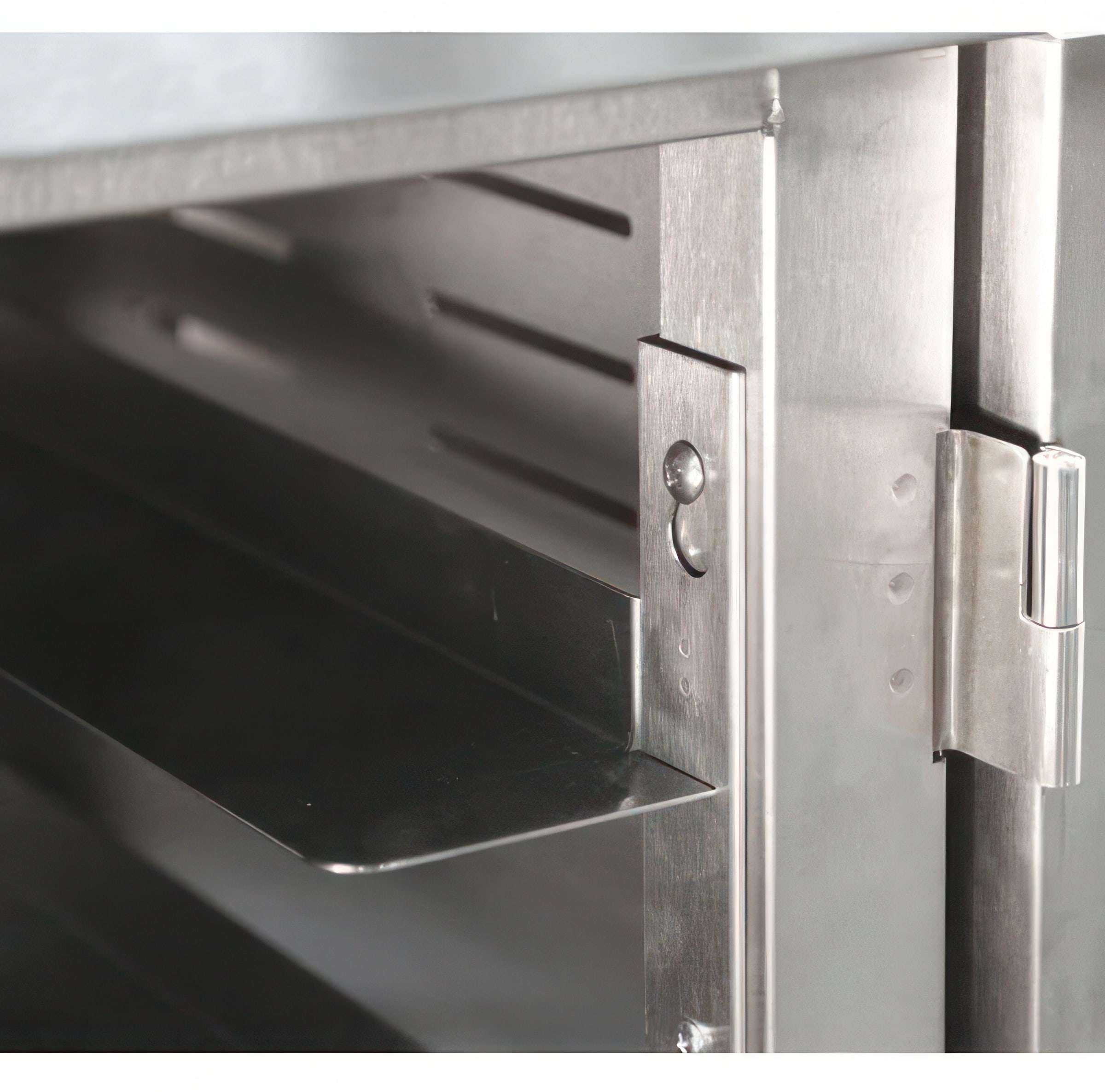

  • Removable ledge panels that are fastened in-place to eliminate vibrations.
  • Welded construction eliminates rattles from loose hardware fittings.
  • 8" casters with 2" wide cushion tread provide quiet, easy movement on multiple surfaces.

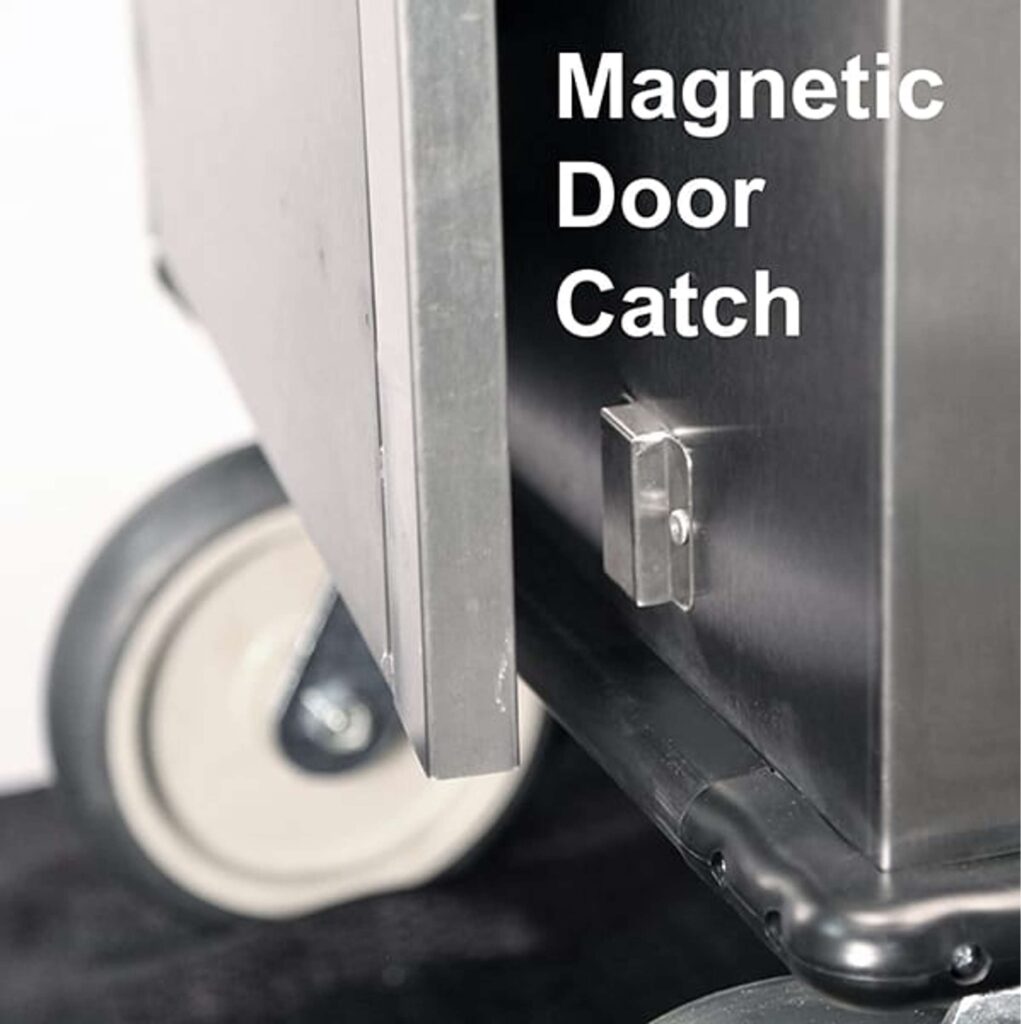

  • Exterior magnet holds the door securely open at 270 degrees.
  • Anti-static floor strap prevents static charge buildup.

Specifications

Collapse
Brand

Lakeside

Caster Size (in)

8

Caster Type

2 Ea. Fixed, 2 Ea. Swivel w/Brake, No-Mark cushion tread.

Country of Origin

US

Item Dimensions (L x W x H) 40.5 in x 25 in x 57 in
Item Weight 240 lbs
Ledge Spacing (in)

5.875

Model

DCD Series

Number of Compartments

2

Proposition 65 Warning This product can expose you to wood dust and chemicals including chromium, which are known to the State of California to cause cancer. For more information, go to: www.P65Warnings.ca.gov.
Shipping Class 125
Shipping Dimensions 48 × 31 × 63 in
Shipping Method

LTL

Shipping Weight 292 lbs
Tray Capacity

14

Trays Per Ledge

1

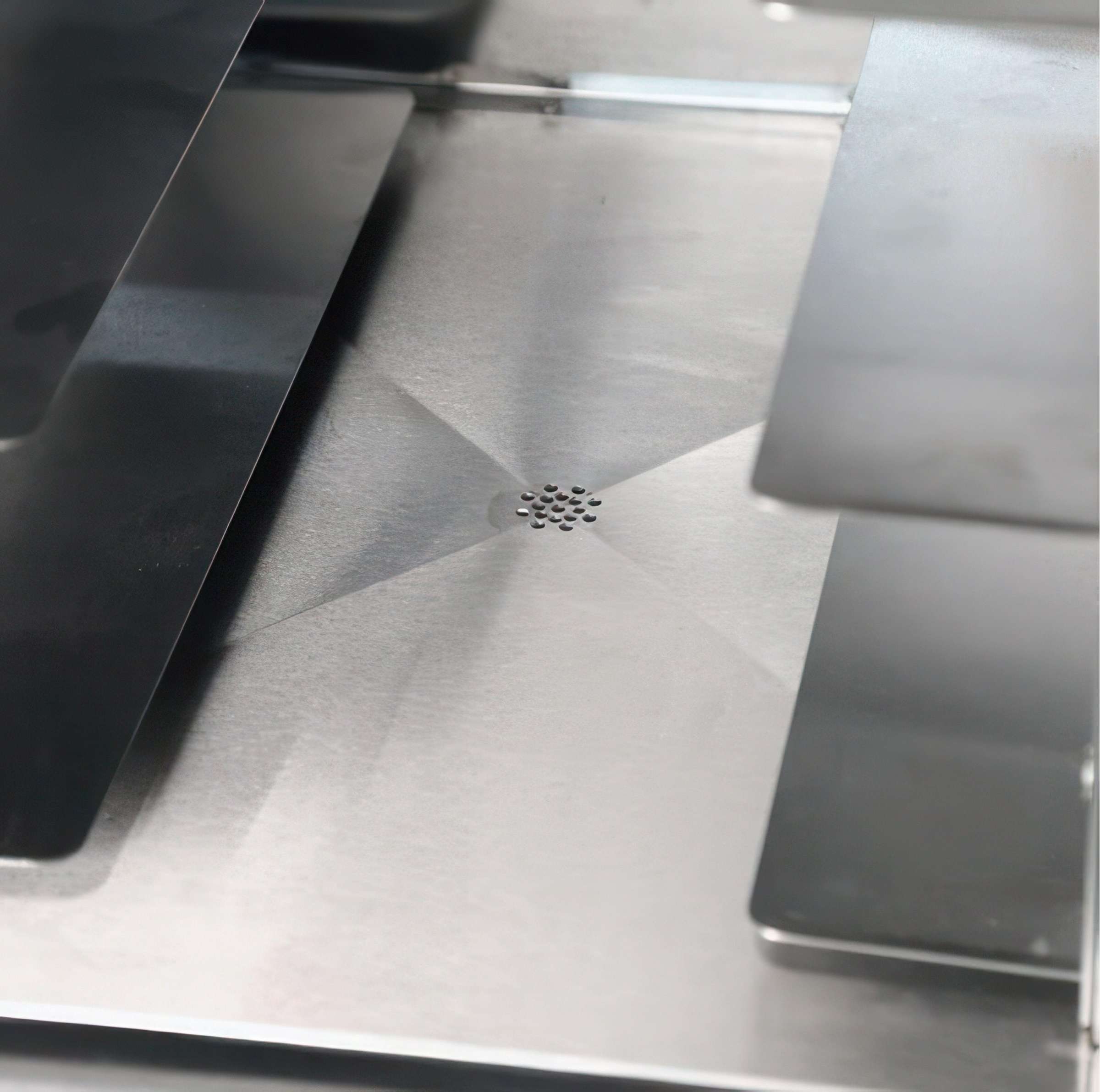

Product Specification: Unit shall be of stainless steel welded and riveted construction to accommodate 14” x 18” or 15” x 20” trays. Material thickness shall be of 16-gauge for top and floor/base,18-gauge for sides and back. Door shall be of 20- gauge insulated double-pan design, and shall be mounted to unit frame with two each 3” (76 mm) heavy-duty stainless steel hinges. Hinges shall be welded to door and unit frame. Door shall swing 270° to provide full access to tray compartment, and shall be easily removable by lifting off of hinges. Doors shall be held in fully open position by magnets imbedded beneath door surface and cabinet exterior. Door latch shall be top-mount rotational design to prevent inadvertent opening during transit. Tray ledges shall be 18 gauge stainless steel angle, welded to an 18 gauge stainless steel frame panel. Ledge panels shall accommodate both 14” x 18” or 15” x 20” trays, and shall be removable for easy cleaning, but fastened to compartment to prevent noise from vibration. Tray compartment shall have vents on end panels and shall have perforated center floor drain(s). Unit base shall have 1¼” (32 mm) thick extruded PVC rounded corner bumpers or full-perimeter bumper, and shall have an anti-static conductive strap fastened to underside. Unit shall have four each extra-load plate type casters, two fixed and two swivel, mounted to a 14-gauge stainless steel dolly on unit base. Swivel casters shall have shielded ball bearing races and zerk fittings for lubrication of bearings. Caster wheels shall be 6” (152 mm) or 8" (203 mm), diameter with 2” (51 mm) wide, non-marking, rounded cushion tread, 2 ea. with brake. Unit shall be NSF listed.

Options & Accessories

Collapse

Standard products are available in a wide variety of common caster and bumper configurations or commercial grade vinyl and laminate finishes. These options along with accessories are listed below. Please contact us if you would like to further modify or customize a product to meet your needs.

Available Finish Options

Stainless Steel

Custom

Collapse

Choose from a wide selection of proven product designs that can also be modified or customized to meet specific applications. Our experienced customer service team is ready to help with a quote today!

Design Your Own
