Lakeside 5624

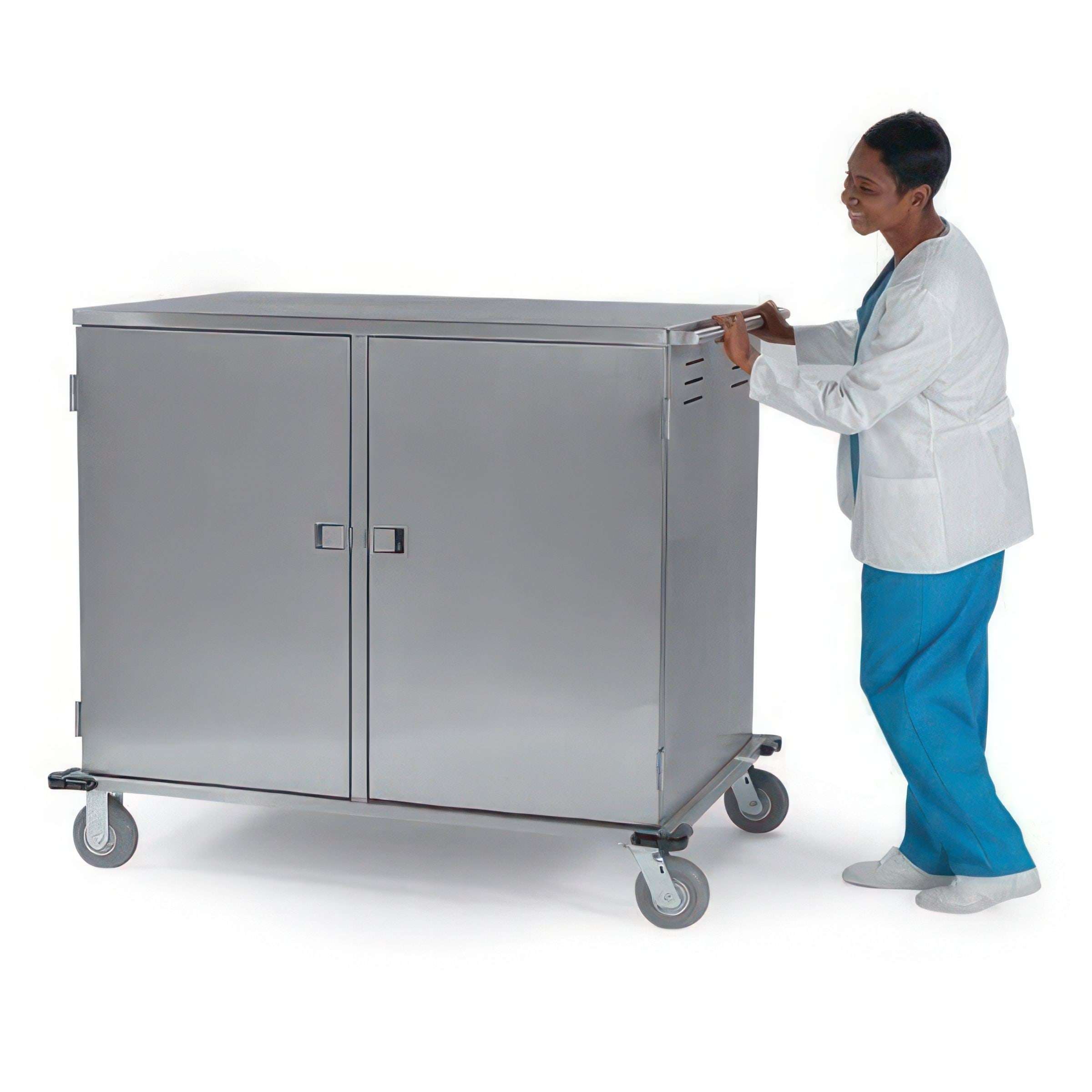

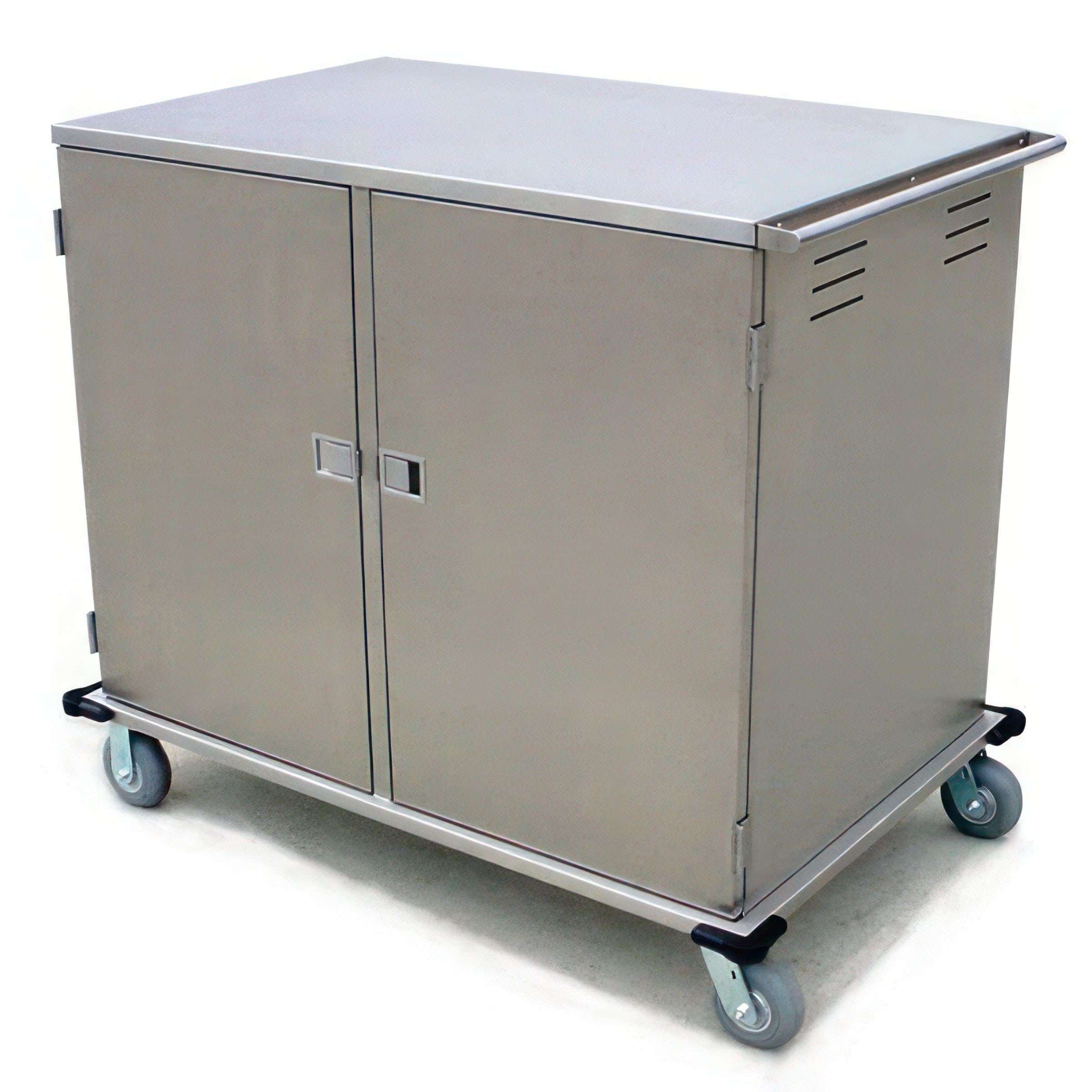

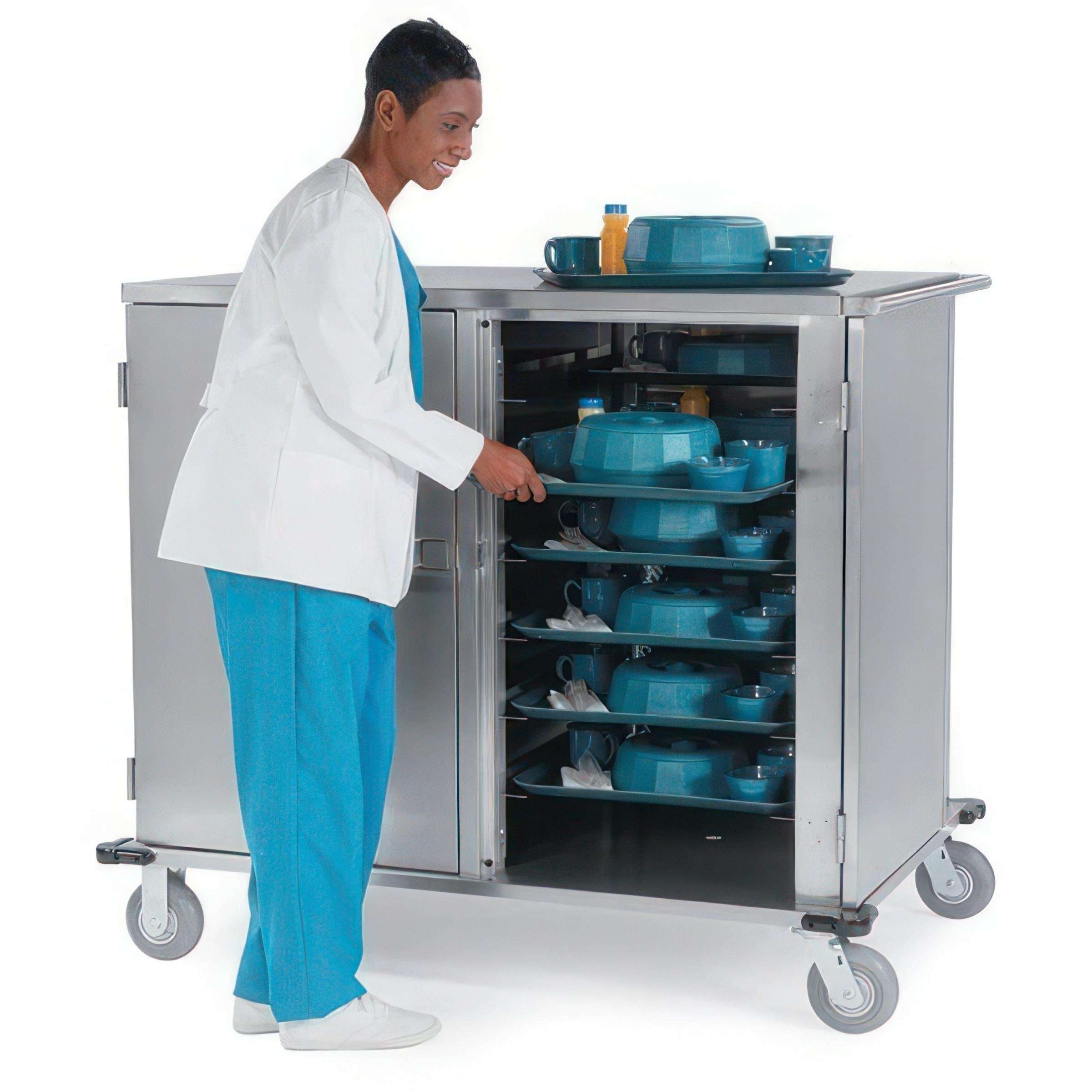

Lakeside 5624 Elite Series Low Profile Tray Delivery Cart, NSF, 24 Tray Capacity

Low profile heights are more manageable for safe transportation.

Elite Series Low Profile Tray Delivery Carts by Lakeside Manufacturing quickly delivers just the right number of meals with this durable cart. The Lakeside 5624 is NSF with a (24) tray capacity. This cart has a stainless steel cart body and removable ladder-style ledge panels that are durable and easy to clean. The vented side panels avoid heat and condensation build-up inside the cabinet. Accommodates both 14" x 18" and 15" x 20" size trays with (2) trays per ledge. Doors open 270° for unobstructed access and features (2) individual compartments. The 5624 has (2) fixed and (2) swivel 6" (152) Lake-Glide casters guide the cart in a straight line, while making turns easier. Fastest in industry lead times from Lakeside’s factory in the USA.
8
Day
Current availability as soon as 8 business days
NSF

  • Stainless steel cart body and removable, ladder-style ledge panels are durable and easy to clean and sanitize.
  • Vented side panels avoid heat and condensation build-up inside the cabinet.
  • Accommodates both 14" x 18" and 15" x 20" size trays with (2) trays per ledge.
  • Doors conveniently open 270° for unobstructed access.
  • 2 fixed and 2 swivel 6" (152) Lake-Glide casters guide the cart in a straight line, while making turns easier.
  • Each cart features (2) individual compartments.

Specifications

Collapse
Brand

Lakeside

Caster Size (in)

6

Caster Type

2 Ea. Fixed, 2 Ea. Swivel

Country of Origin

US

Item Dimensions (L x W x H) 55.75 in x 34.5 in x 42 in
Item Weight 305 lbs
Ledge Spacing (in)

5.25

NSF

Yes

Number of Compartments

2

Proposition 65 Warning This product can expose you to wood dust and chemicals including chromium, which are known to the State of California to cause cancer. For more information, go to: www.P65Warnings.ca.gov.
Shipping Class 125
Shipping Dimensions 71 × 38.5 × 58.5 in
Shipping Method

LTL

Shipping Weight 277 lbs
Tray Capacity

24

Trays Per Ledge

2

Product Specification: Unit shall be of stainless steel welded and riveted construction to accommodate 14” x 18” (356 x 457 mm) or 15” x 20” (381 x 508 mm) trays. Material thickness shall be of 16 gauge for top and floor/base, 20 gauge for sides and back. Doors shall be of 20 gauge insulated double-pan design, and shall be mounted to unit frame with two each 3” (76 mm) heavy-duty stainless steel hinges. Hinges shall be welded to door and unit frame. Doors shall swing 270° to provide full access to tray compartments, and shall be easily removable by lifting off of hinges. Door latches shall be recessed paddle design. Tray ledges shall be 18 gauge stainless steel angle, welded to an 18 gauge stainless steel frame panel at 5¼” (133 mm) spacing. Ledge panels shall be shall accommodate both 14” x 18” or 15” x 20” trays (two trays per ledge), and shall be removable for easy cleaning. Tray compartments shall have vents on end panels and shall have perforated center floor drains. Unit base shall have 1¼” (32 mm) thick extruded PVC rounded bumpers mounted to corners. A 1” tubular push handle shall be welded to one end of the unit. Unit shall have four each extra-load plate type casters, two fixed and two swivel, mounted to a 14 gauge stainless steel dolly on unit base. Swivel casters shall have shielded ball bearing races and zerk filltings for lubrication of bearings. Caster wheels shall be 6” (152 mm) diameter with 2” wide, non-marking, rounded cushion tread. Unit shall be NSF listed.

Options & Accessories

Collapse

Standard products are available in a wide variety of common caster and bumper configurations or commercial grade vinyl and laminate finishes. These options along with accessories are listed below. Please contact us if you would like to further modify or customize a product to meet your needs.

Available Finish Options

Stainless Steel

Custom

Collapse

Choose from a wide selection of proven product designs that can also be modified or customized to meet specific applications. Our experienced customer service team is ready to help with a quote today!

Design Your Own
