Conveyors by Lakeside Manufacturing were designed for streamlined storage and material handling in industrial operations.

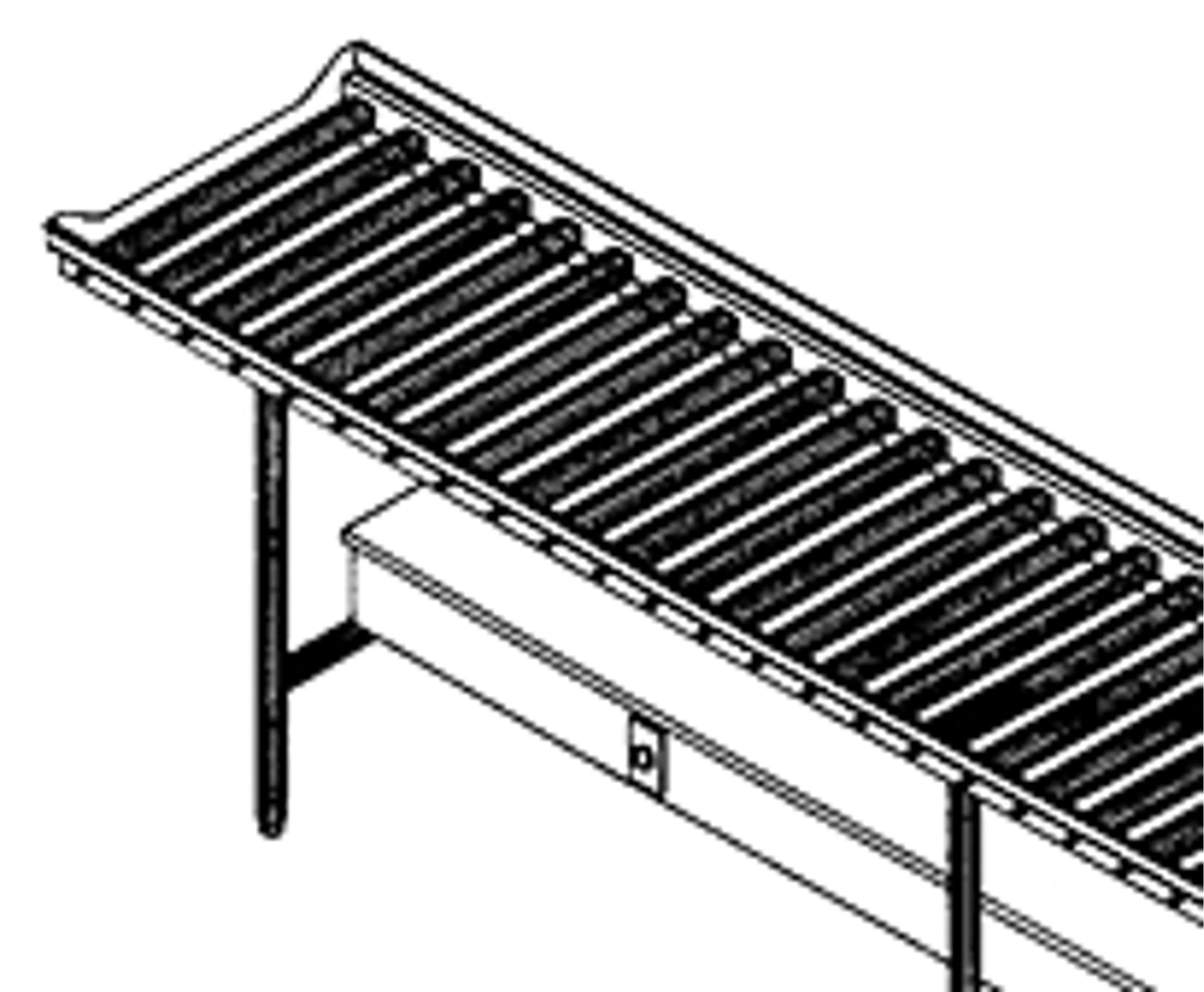

Conveyors by Lakeside Manufacturing were designed for streamlined material handling in industrial operations. The Lakeside RC16 Roller Conveyor measures tray size plus 1/2" wide and 16-Ft. long. This conveyor is equipped with stainless steel rollers and adjustable bullet feet. Mobile or stationary, these units are long lasting and easy to clean. Tray size must be known when unit is ordered to provide proper size cross member and end plates to accommodate tray. Two years parts and one year labor warranty. Variety of add-on options to choose from. Superior lead times. Made in the USA.
- Stainless steel rollers.
- Adjustable bullet feet.
- This straight-line roller conveyor is designed for material handling in industrial environments.
- Assists in streamline material assembly for any industrial operation.
- Mobile or stationary, these units are long lasting and easy to clean.
- Since these units are built to customer specification, some units may not be available in mobile configuration.
- Two years parts and one year labor warranty.
- Available Options: Electric Raceways, outlets, Field Joint, Moveable Over Shelf, Casters, Removeable Sections, Cord & Plug.
- Tray size must be known when unit is ordered to provide proper size cross member and end plates to accommodate tray.
Specifications
Collapse| Shipping Dimensions | |
|---|---|
| Brand | Lakeside |
| Country of Origin | US |
| Item Dimensions (L x W x H) | 192 in x 22.5 in x 36 in |
| Model | Roller Conveyor |
| NSF | No |
| Proposition 65 Warning | This product can expose you to wood dust and chemicals including chromium, which are known to the State of California to cause cancer. For more information, go to: www.P65Warnings.ca.gov. |
| Shipping Method | LTL |
| Shipping Weight | 320 lbs |
Product Specification: The open pan conveyor body is constructed with 14-gauge 304 stainless steel. The conveyor is supported by 1 5/8” (4cm) O.D. 16-gauge stainless steel tubular legs, which are welded to 14-gauge channels. These channels are then welded directly to conveyor frame. Rollers are 2” (5cm) O.D. grey PVC tubing with stainless steel ball bearings to ensure easy, reliable movement. Rollers are mounted on stainless steel, hex spring loaded shafts for easy removal during cleaning and replacement. The roller conveyor will handle compartmental or divided trays as well as flat bottom trays. These conveyors come standard with stainless steel bullet feet which allows for adjustable height. For both type conveyors, tray size must be known when unit is ordered to provide proper size cross member and end plates to accommodate tray.
Custom
CollapseChoose from a wide selection of proven product designs that can also be modified or customized to meet specific applications. Our experienced customer service team is ready to help with a quote today!
Design Your OwnAlso See

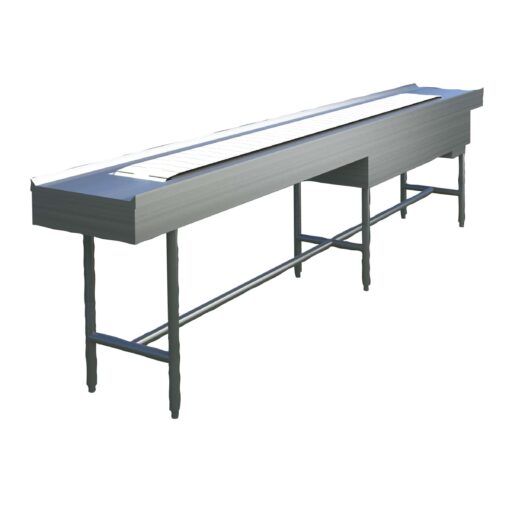

Lakeside SBC18
