Conveyors by Lakeside Manufacturing were designed for streamlined storage and material handling in industrial operations.

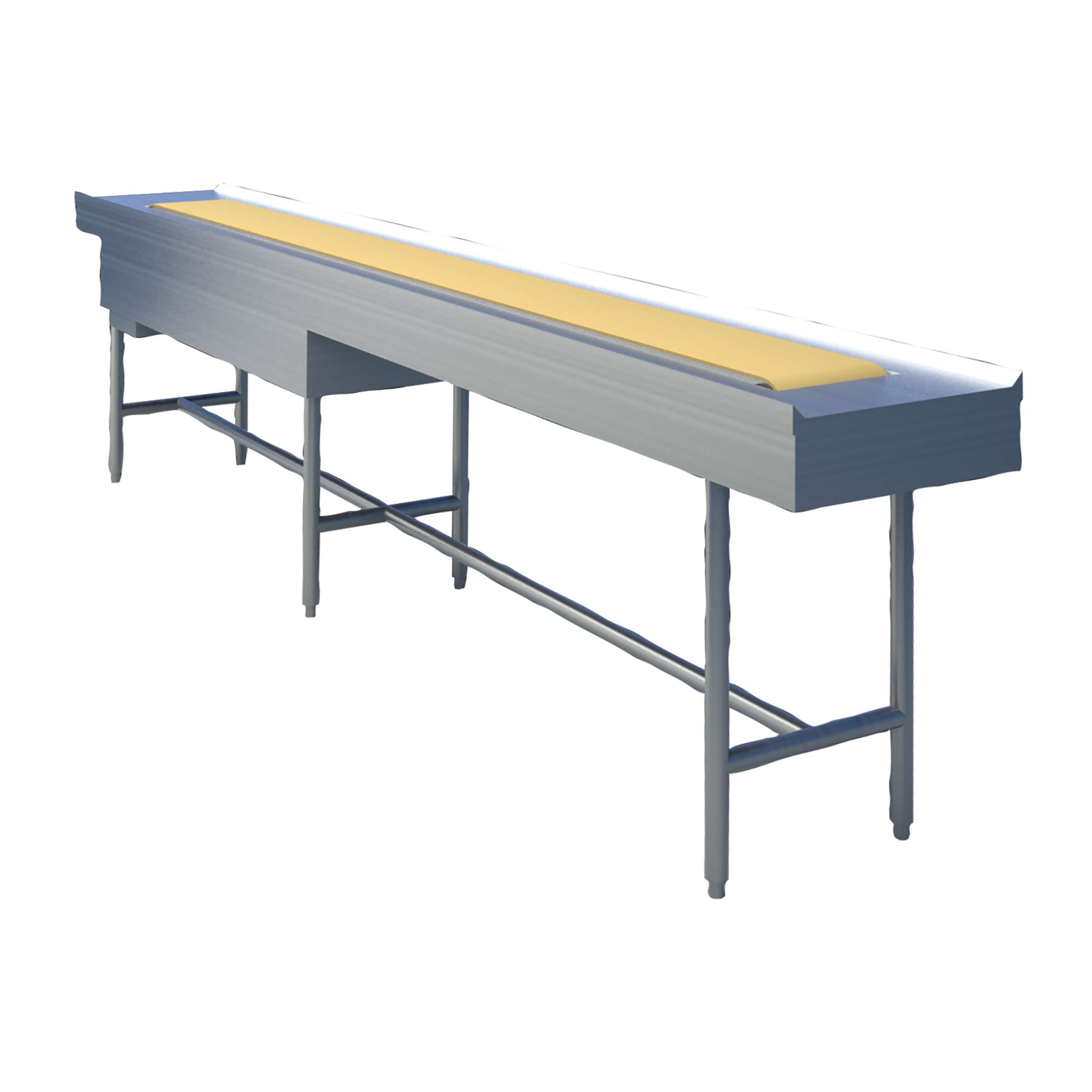

Conveyors by Lakeside Manufacturing were designed for streamlined material handling in industrial operations. The Lakeside FBC14 Fabric Belt Conveyor measures 20-1/8" wide and 14-Ft. long. Mobile or stationary, these units are long lasting and easy to clean. Two years parts and one year labor warranty. Variety of add-on options to choose from. Superior lead times. Made in the USA.
- All stainless steel construction.
- This straight-line fabric belt motorized conveyor is designed for material handling in industrial environments.
- Mobile or stationary, these units are long lasting and easy to clean.
- Since these units are built to customer specifications, some units may not be available in mobile configuration. Please consult factory.
- Two years parts and one year labor warranty.
- Available Options: Electric Raceways, Outlets, Field Joint, Moveable Over Shelf, Casters, Cord & Plug, 200 AMP Service Upgrade.
Specifications
Collapse| Shipping Dimensions | |
|---|---|
| Brand | Lakeside |
| Country of Origin | US |
| Item Dimensions (L x W x H) | 168 in x 20.13 in x 36 in |
| Model | Fabric Belt Conveyor |
| NSF | No |
| Proposition 65 Warning | This product can expose you to wood dust and chemicals including chromium, which are known to the State of California to cause cancer. For more information, go to: www.P65Warnings.ca.gov. |
| Shipping Method | LTL |
| Shipping Weight | 860 lbs |
Product Specification: Drive housing is 18-gauge stainless steel with 2”x2”x3/16” stainless steel with all welded angle and channel framework. Removable panels are provided for easy access. Drive is a totally enclosed fan cooled D.C. permanent magnet motor through worm gear speed reducer, sprockets, and roller chain. It has a fully lagged power roller with snubbed drive assembly providing 270° belt contact for a positive drive. Automatic belt tensioning device is provided to maintain tracking. Rollers are crowned to ensure proper tracking. Conveyor is furnished with side belt guides to also assist in belt tracking. Motor controlled with SCR power transmission group. SCR main control panel, located on drive end of conveyor, has speed control station with stop start controls. SCR system includes dynamic braking. All controls are NEMA 4 watertight. Shafting is solid stainless steel with stainless steel sprockets. Bearings are self-aligning ball bearings sealed for life. Belt is fabric type Hycar Buena N. Rubber over woven synthetic carcass, which is FDA approved. Belt speed is adjustable with speeds ranging from approximately 0 to 40 feet per minute. Conveyor slider pan is formed of stainless steel die embossed discs to provide “air glide” ride and prevent friction drag between belt and pan. Die-formed crimp edge has straight turndown along the sides and is straight down on the ends. Belt terminates at drive end to provide flat top space for one tray. Supports are 1-5/8” O.D. 16-gauge stainless steel tubing “H” frames on 6’ to 7’ centers. Interconnecting cross rails are required. The intermediate section is a 1-1/2”x1-1/2” 12-gauge stainless steel angle frame 1-3/4” (4cm) O.D. PVC bearing supported stainless steel shaft mounted idler rollers on 4” (10cm)-0” centers. Exposed sides are fitted with removable stainless steel panels. The tail section consists of a stainless steel framework which houses tail roller and bracket guides. Stainless steel panels conceal frame where exposed.
Custom
CollapseChoose from a wide selection of proven product designs that can also be modified or customized to meet specific applications. Our experienced customer service team is ready to help with a quote today!
