Conveyors by Lakeside Manufacturing were designed for streamlined storage and material handling in industrial operations.

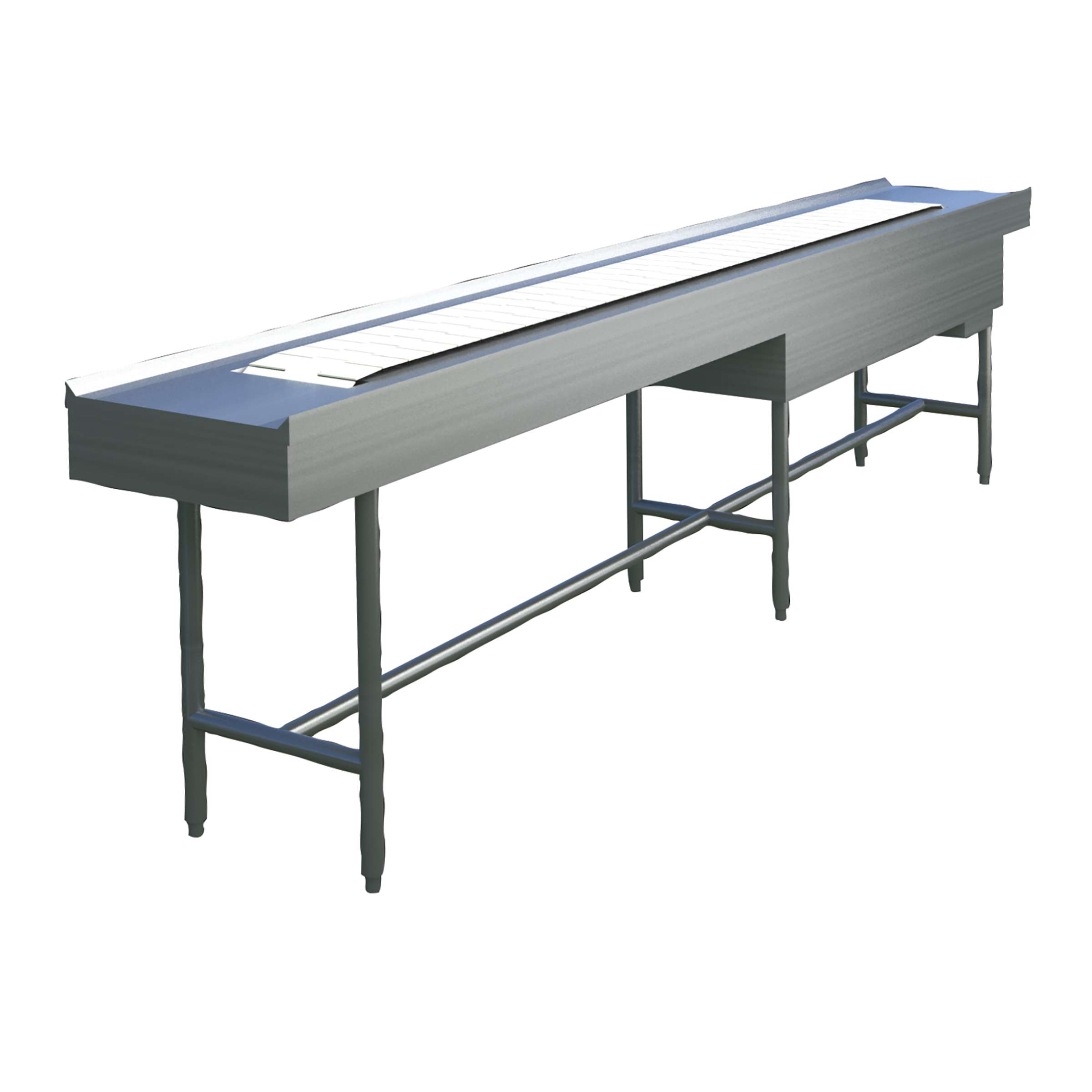

Conveyors by Lakeside Manufacturing were designed for streamlined material handling in industrial operations. The Lakeside SBC10 Slat Belt Conveyor measures 20-1/8" wide and 10-Ft. long. This conveyor is constructed of all stainless steel. Mobile or stationary, these units are long lasting and easy to clean. Two years parts and one year labor warranty. Variety of add-on options to choose from. Superior lead times. Made in the USA.
- All stainless steel construction.
- This straight-line slat belt motorized conveyor is designed for material handling in industrial environments.
- Assists in streamline material assembly for any industrial operation.
- Mobile or stationary, these units are long lasting and easy to clean.
- Since these units are built to customer specifications, some units may not be available in mobile configuration. Please consult factory.
- Two years parts and one year labor warranty.
- Available Options: Electric Raceways, Outlets, Field Joint, Moveable Over Shelf, Casters, Cord & Plug, 200 AMP Service Update, Wash System.
Specifications
Collapse| Shipping Dimensions | |
|---|---|
| Brand | Lakeside |
| Country of Origin | US |
| Item Dimensions (L x W x H) | 120 in x 20.13 in x 34 in |
| NSF | No |
| Proposition 65 Warning | This product can expose you to wood dust and chemicals including chromium, which are known to the State of California to cause cancer. For more information, go to: www.P65Warnings.ca.gov. |
| Shipping Method | LTL |
| Shipping Weight | 750 lbs |

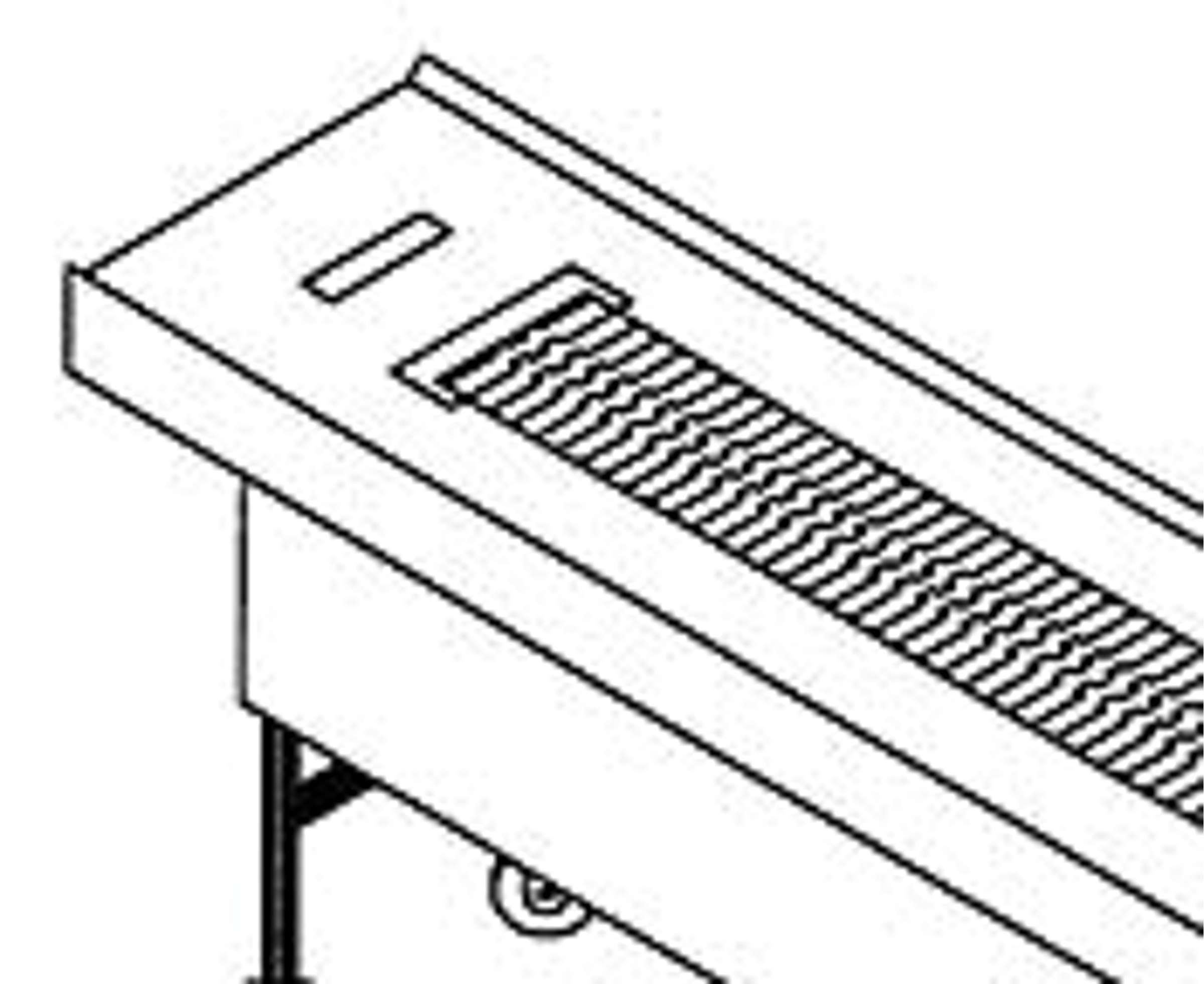

Product Specification: Drive housing is 18-gauge stainless steel with 2”x2”x3/16” stainless steel with all welded angle and channel framework. Removable panels are provided for easy access. Conveyor is driven by a totally enclosed fan cooled D.C. permanent magnet motor through worm gear speed reducer, sprockets, and roller chain. Motor controlled with SCR power transmission group. Main control panel has speed control station with stop-start controls. SCR system includes dynamic braking, and is NEMA 4 watertight. Shafting is solid stainless steel with stainless steel sprockets. Bearings are self-aligning ball bearings sealed for life. Belt is Lo-Friction Lexan plastic with tapered slats carried by a stainless steel roller chain. Slats are snap attached to the chain and do not require special tools for removal. Belt speed is electronically adjustable in speed range from approximately 0 to 40 FPM. Variable speeds provide for high volume locations and times. Conveyor slider pan belt terminates at drive end to provide flat top space for one tray. Belt terminates at drive to
also ensure a smooth transition from belt to the landing. Die-formed crimp edge has straight turndown along the sides and is straight down on the ends. Supports are 1-5/8” O.D. 16-gauge stainless steel tubing “H” frames on 6’ to 7’ centers. Interconnecting cross rails are required. The intermediate section is 1-1/2”x1-1/2”, 12-gauge stainless steel angle framing with full length, replaceable, synthetic guide rails for belt return. The tail section consists of a stainless steel framework, which houses tail roller and bracket guides. Stainless steel panels will conceal frame where exposed.
