Conveyors by Lakeside Manufacturing were designed for streamlined storage and material handling in industrial operations.

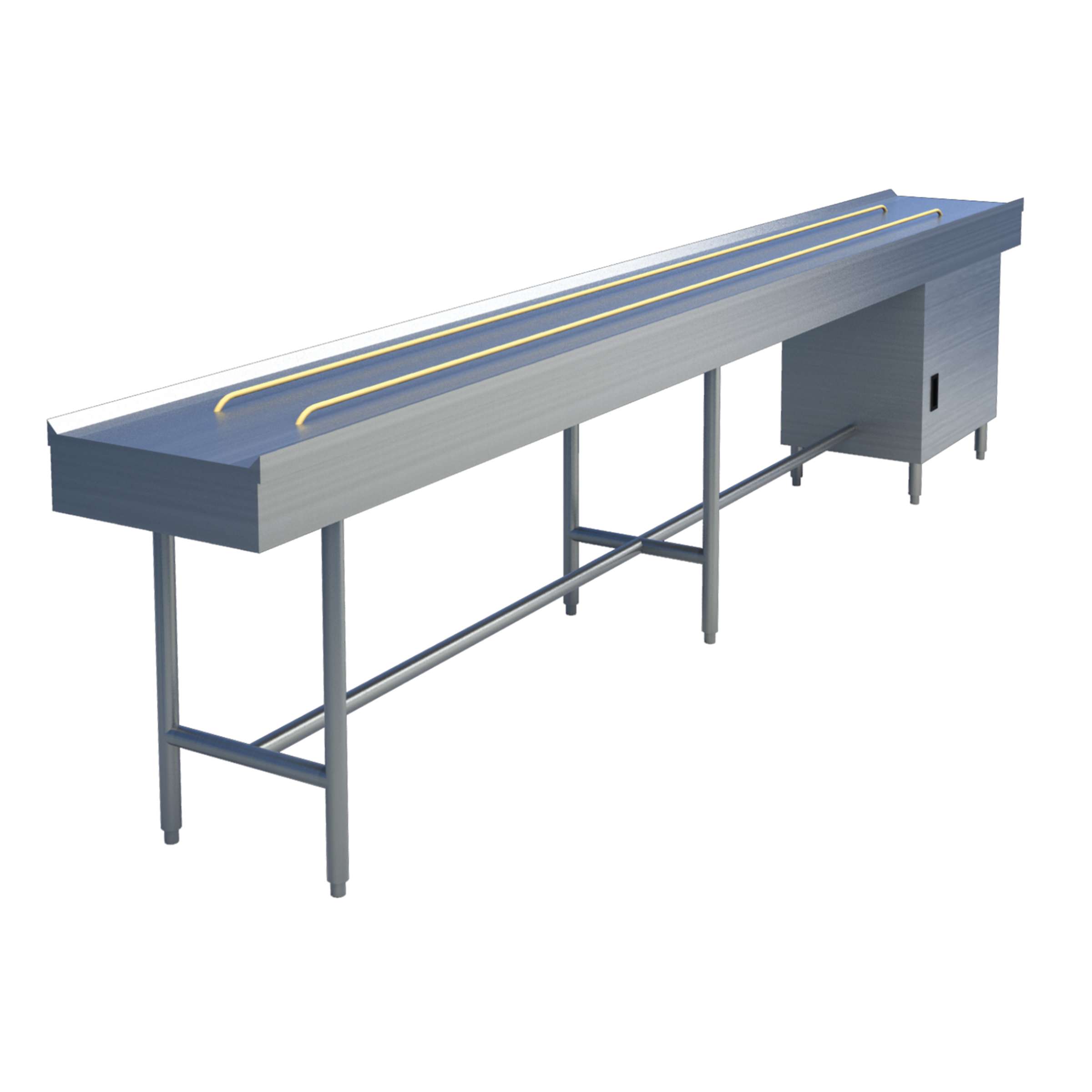

Conveyors by Lakeside Manufacturing were designed for streamlined material handling in industrial operations. The Lakeside BBC16 Bandveyor Conveyor measures 20-1/8" wide and 16-Ft. long. Mobile or stationary, these units are long lasting and easy to clean. Two years parts and one year labor warranty. Variety of add-on options to choose from. Superior lead times. Made in the USA.
- All stainless steel construction.
- This straight-line band belt motorized conveyor is designed for material handling in industrial environments.
- Mobile or stationary, these units are long lasting and easy to clean.
- Since these units are built to customer specifications, some units may not be available in mobile configuration. Please consult factory.
- Two years parts and one year labor warranty.
- Available Options: Electric Raceways, Outlets, Field Joint, Moveable Over Shelf, Casters, Cord & Plug, Wash System.
Specifications
Collapse| Shipping Dimensions | |
|---|---|
| Brand | Lakeside |
| Country of Origin | US |
| Item Dimensions (L x W x H) | 192 in x 20.13 in x 36 in |
| Model | Bandveyor Conveyor |
| NSF | No |
| Proposition 65 Warning | This product can expose you to wood dust and chemicals including chromium, which are known to the State of California to cause cancer. For more information, go to: www.P65Warnings.ca.gov. |
| Shipping Method | LTL |
| Shipping Weight | 920 lbs |
Product Specification: Drive housing is 18-gauge stainless steel with 2”x2”x3/16” stainless steel with all welded angle and channel framework. Removable panels are provided for easy access. Drive is a totally enclosed fan cooled D.C. permanent magnet motor through worm gear speed reducer, sprockets, and roller chain. Automatic belt tensioning device is provided to maintain tracking. Rollers are crowned to ensure proper tracking. Conveyor is furnished with side belt guides to also assist in belt tracking. Motor controlled with SCR power transmission group. SCR main control panel, located on drive end of conveyor, has speed control station with stop-start controls. SCR system includes dynamic braking. All controls are NEMA 4 watertight. Shafting is solid stainless steel with stainless steel sprockets.

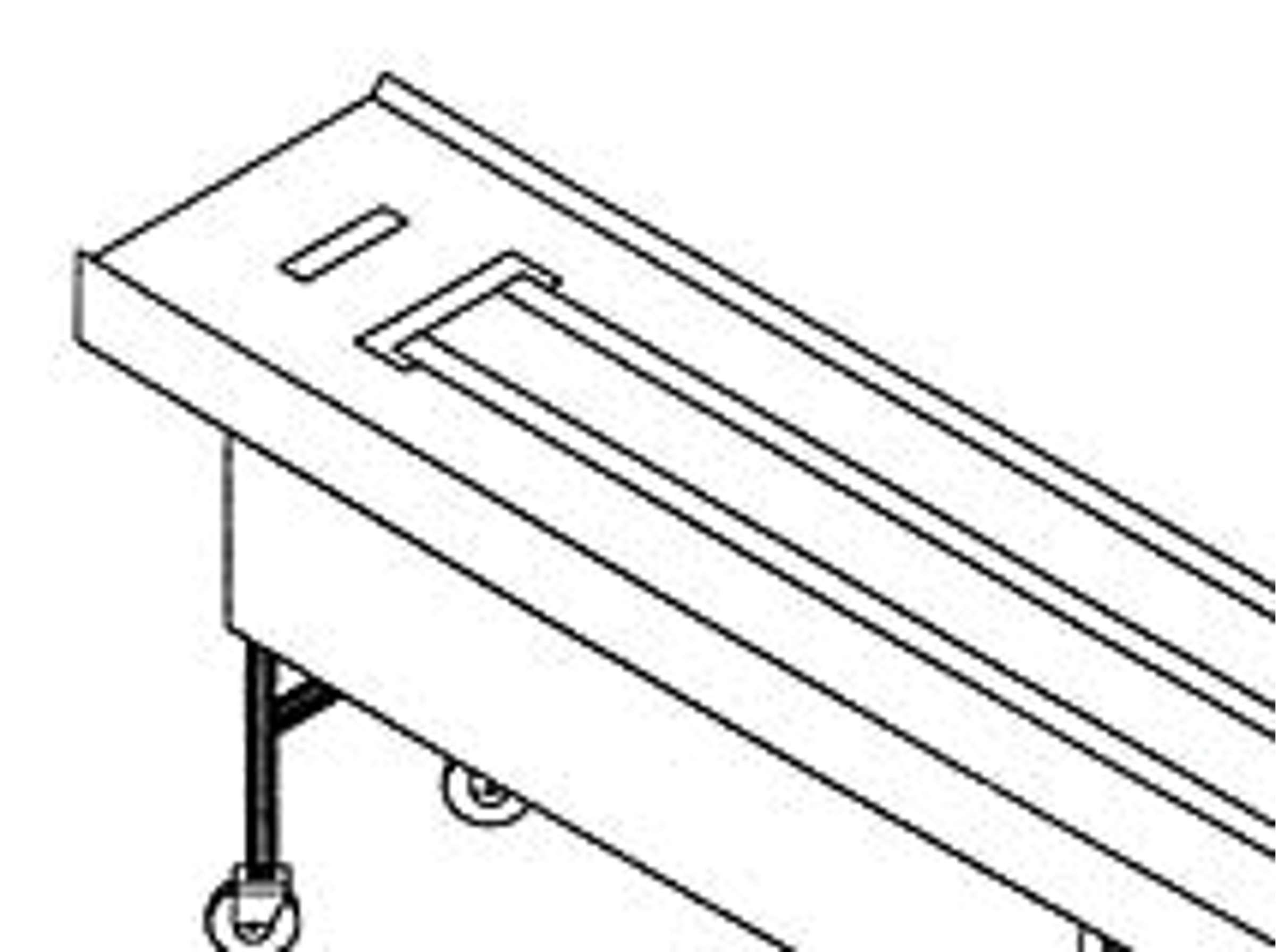

Bearings are self-aligning ball bearings sealed for life. Belt speed is electronically adjustable with speeds ranging from approximately 0 to 40 feet per minute to help your labor force during busy times. Dual ½” diameter urethane belts are FDA approved. Variable speeds provide for high volume locations and times. Die-formed inverted edge on long sides and straight down on the ends. Belt terminates at drive end to provide flat top space for one tray and to ensure a smooth transition from belt to the landing. Supports are 1-5/8” (4cm) O.D. 16-gauge stainless steel tubing “H” frames on 6’ to 7’ centers for ample support. Interconnecting cross rails are required. The Intermediate section is 1.5”x1.5”x 12-gauge stainless steel angle frame. 2” O.D. PVC bearing supported stainless steel shaft mounted idler roller on 48” (122cm) centers. Exposed sides are fitted with removable stainless steel panels. The tail sections consist of a stainless steel framework, which houses tail roller and bracket guides. Stainless steel panels conceal frame where exposed. Conveyor will stop as tray reaches the check point and will automatically restart when tray is removed to ensure that no trays are lost during loading period.
