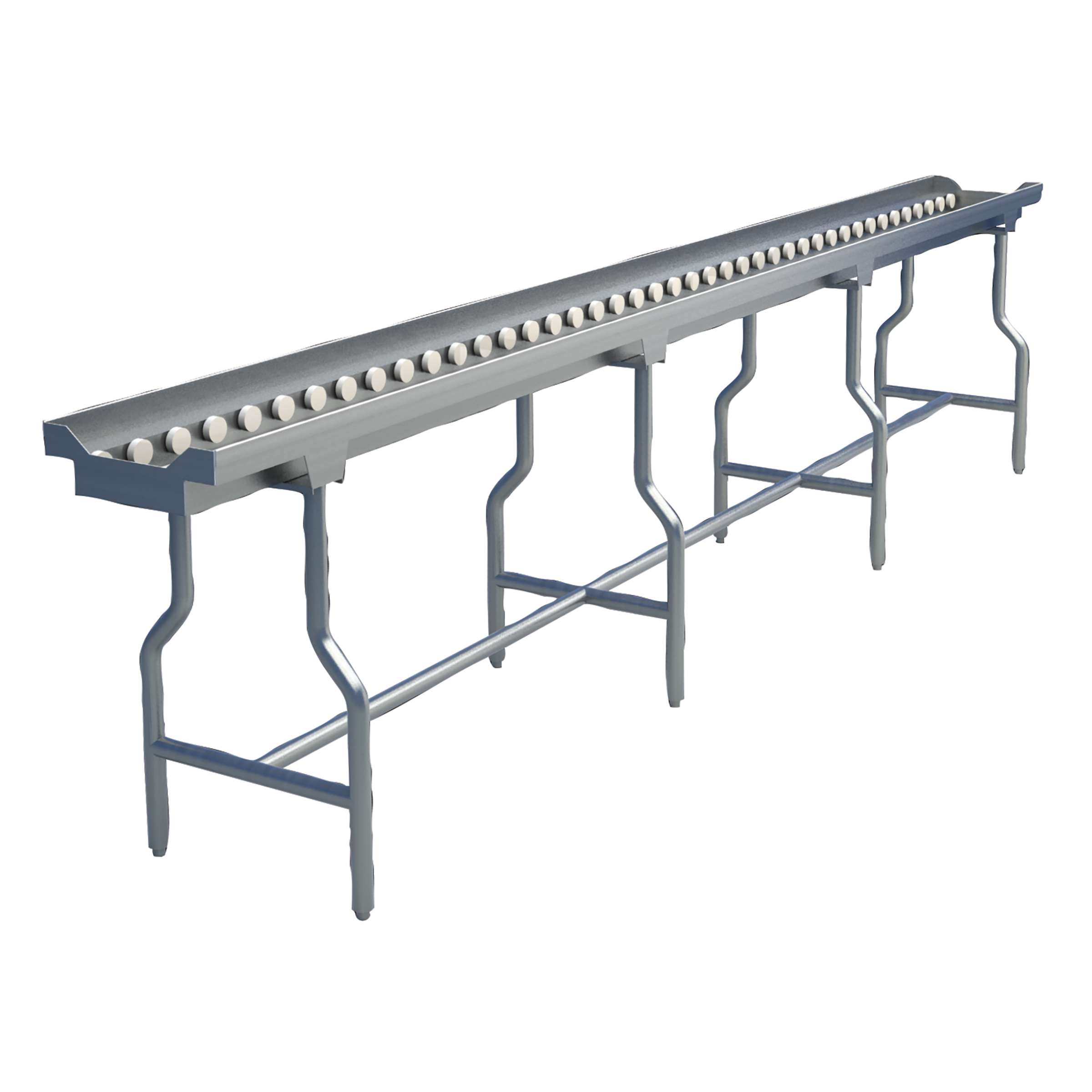

Conveyors by Lakeside Manufacturing were designed for streamlined storage and material handling in industrial operations.
Conveyors by Lakeside Manufacturing were designed for streamlined material handling in industrial operations. The Lakeside SWC10 Skate Wheel Conveyor measures tray size plus 1/2" and 10-Ft. long. Its stainless steel bullet feet allow for adjustable height. Mobile or stationary, these units are long lasting and easy to clean. Two years parts and one year labor warranty. Tray size must be known when unit is ordered to provide proper size cross member and end plates to accommodate tray. Variety of available add-on options to choose from. Superior lead times. Made in the USA.
- Stainless steel bullet feet that allow for adjustable height.
- This straight-line skate wheel conveyor is designed for material handling in industrial environments.
- Assists in streamline material assembly for any industrial operation.
- Mobile or stationary, these units are long lasting and easy to clean.
- Since these units are built to customer specifications, some units may not be available in mobile configuration. Please consult factory.
- Two years parts and one year labor warranty.
- Available Options: Electric Raceways, Outlets, Field Joint, Moveable Over Shelf, Casters, Removeable Sections, Cord & Plug.
- Tray size must be known when unit is ordered to provide proper size cross member and end plates to accommodate tray.
Specifications
Collapse| Shipping Dimensions | |
|---|---|
| Brand | Lakeside |
| Country of Origin | US |
| Item Dimensions (L x W x H) | 120 in x 22.5 in x 36 in |
| Model | Skate Wheel Conveyor |
| NSF | No |
| Proposition 65 Warning | This product can expose you to wood dust and chemicals including chromium, which are known to the State of California to cause cancer. For more information, go to: www.P65Warnings.ca.gov. |
| Shipping Method | LTL |
| Shipping Weight | 200 lbs |

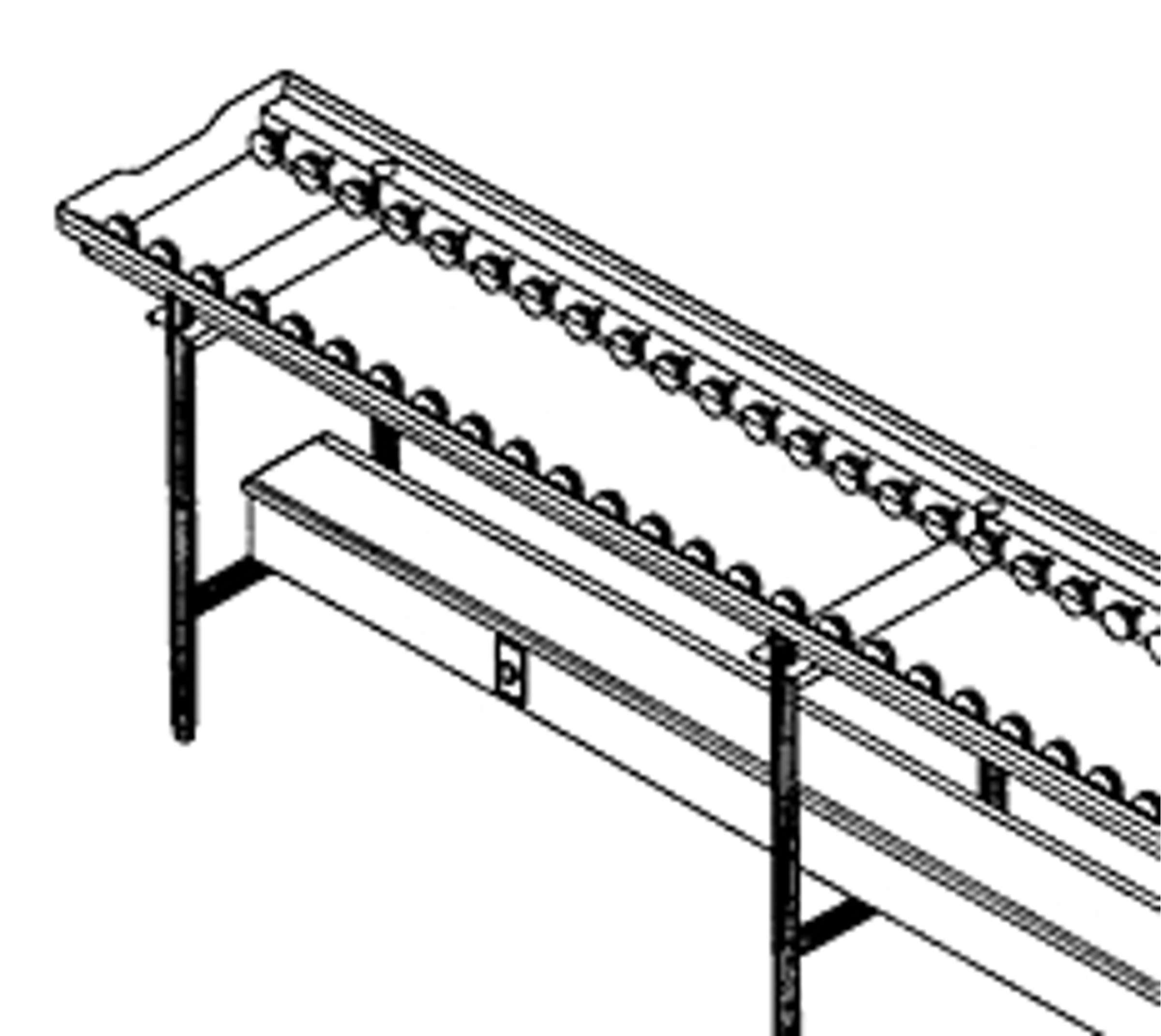

Product Specification: The open pan conveyor body is constructed with 14-gauge 304 stainless steel. The conveyor is supported by 1 5/8” (4cm) O.D. 16-gauge stainless steel tubular legs, which are welded to 14-gauge channels. These channels are then welded directly to conveyor frame.
Skate wheel assemblies are 2” (5cm) diameter nylon wheels with low friction bushing for free movement. Wheels secured to frame with stainless steel bolts and stainless steel self- locking nuts. Wheels spaced on 3” (8cm) - 4” (10cm) centers to ensure positive contact between tray and roller. Wheels are removable for easy cleaning. These conveyors come standard with stainless steel bullet feet which allows for adjustable height. For both type conveyors, tray size must be known when unit is ordered to provide proper size cross member and end plates to accommodate tray.
Custom
CollapseChoose from a wide selection of proven product designs that can also be modified or customized to meet specific applications. Our experienced customer service team is ready to help with a quote today!
Design Your Own
