Conveyors by Lakeside Manufacturing were designed for streamlined storage and material handling in industrial operations.

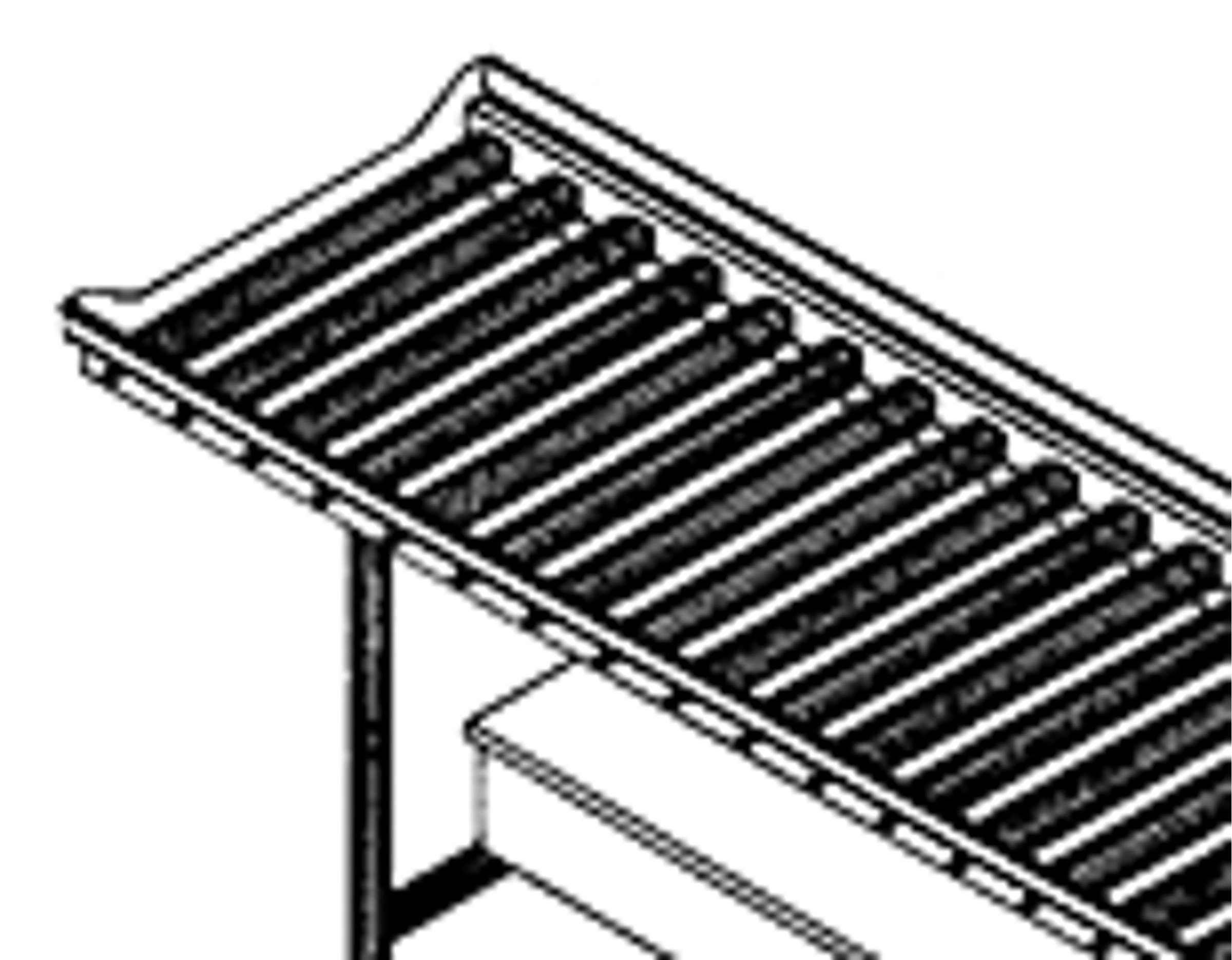

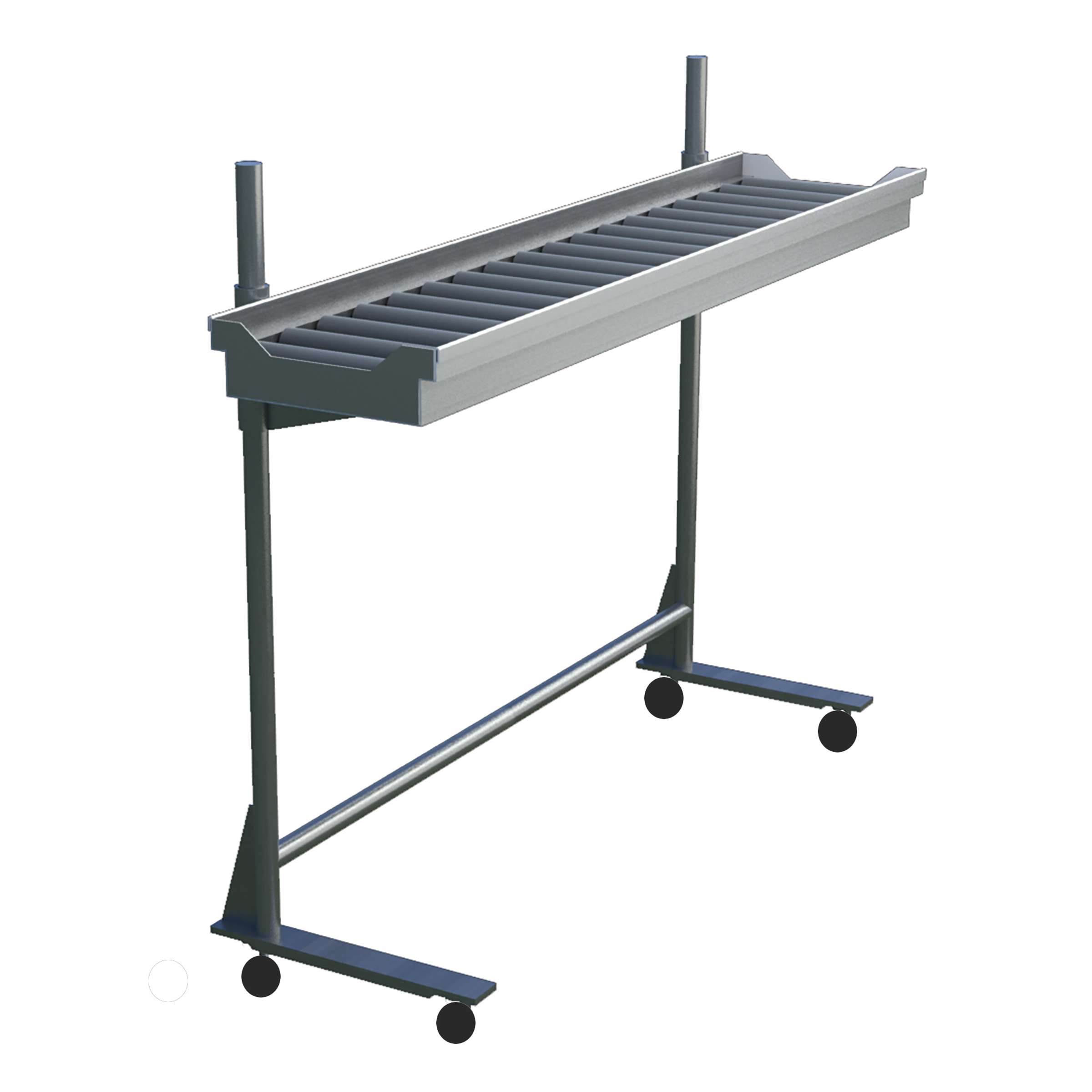

Conveyors by Lakeside Manufacturing were designed for streamlined material handling in industrial operations. The Lakeside CRC07 Cantilever Conveyor is tray size plus 1/2" wide and 7-Ft. long. Comes in choose of all stainless steel or aluminum construction and assists in streamline material assembly for any industrial operation. This conveyor is easy to clean and long lasting. Its height is adjustable. Equipped with 3" diameter casters and stainless steel rollers. Two years parts and one year labor warranty. Variety of add-on options to choose from. Superior lead times. Made in the USA.
- All stainless steel or aluminum construction.
- This straight-line cantilever conveyor is designed for material handling in industrial environments.
- Assists in streamline material assembly for any industrial operation.
- Easy to clean and long lasting.
- Adjustable height.
- 3" diameter casters.
- Stainless steel rollers.
- Two years parts and one year labor warranty.
- Available Options: Electric Raceways, Outlets, Field Joint, Removeable Sections, Cord & Plug.
Specifications
Collapse| Shipping Dimensions | |
|---|---|
| Brand | Lakeside |
| Country of Origin | US |
| Item Dimensions (L x W x H) | 84 in x 20.5 in x 45 in |
| Model | Cantilever Conveyor |
| NSF | No |
| Proposition 65 Warning | This product can expose you to wood dust and chemicals including chromium, which are known to the State of California to cause cancer. For more information, go to: www.P65Warnings.ca.gov. |
| Shipping Method | LTL |
| Shipping Weight | 150 lbs |
Product Specification: The cantilever conveyor consists of a standard conveyor pan and standard roller assemblies. The cantilever conveyor uprights are made of 2” (4cm) diameter, durable, 16-gauge stainless steel tube. Two uprights are required for a conveyor up to 6’ in length. Three uprights are required for conveyors over 6’ long to ensure ample support. Uprights have 1 1/4” (3cm) 18-gauge stainless steel cross rails welded between for support and each upright has a 12-gauge stainless steel fully welded gusset for support. Pan Support consists of a 14-gauge stainless steel tube that slides over upright for adjustable conveyor height. Conveyor is adjustable for most ergonomic working heights. Casters are 3” (8cm) diameter swivel plate type with brakes (2 of 4 or 3 of 6) to ensure the conveyor stays in place during operations.
Custom
CollapseChoose from a wide selection of proven product designs that can also be modified or customized to meet specific applications. Our experienced customer service team is ready to help with a quote today!
Design Your OwnAlso See
Lakeside SBC20

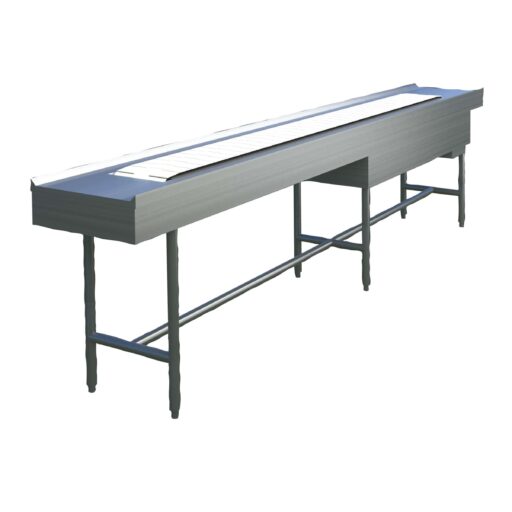

Lakeside SBC14
